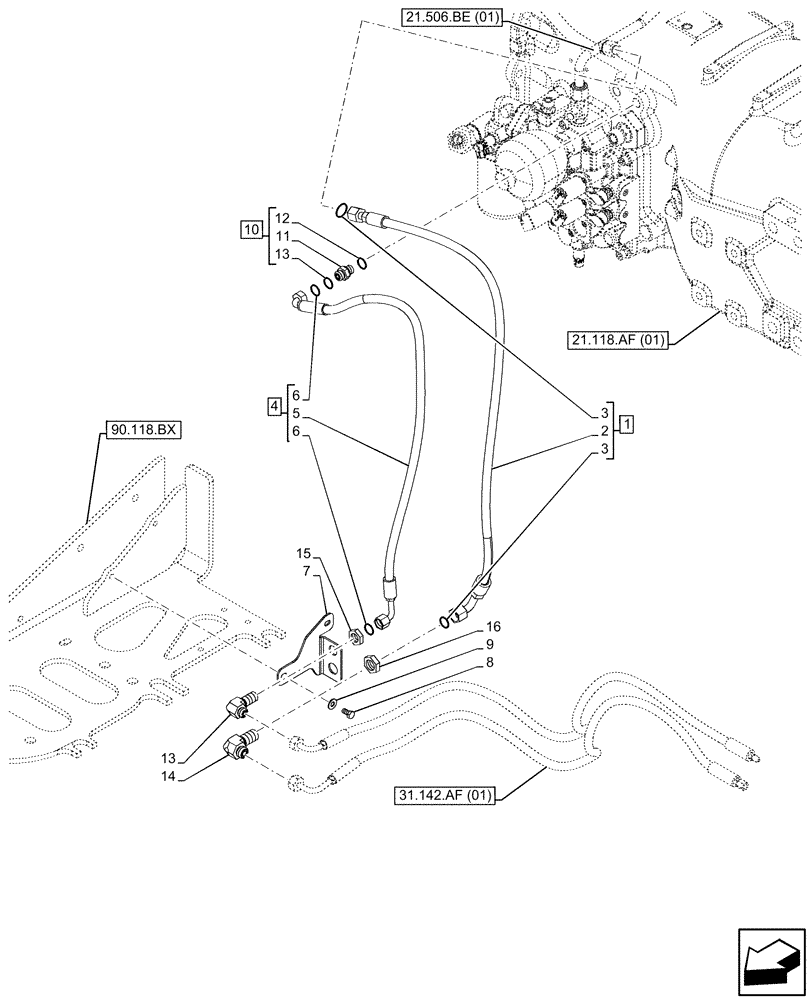

Запчасти Case IH MAXXUM 135 (31.142.AF[02]) - VAR - 743700, 744790 - FRONT PTO, LINE (31) - IMPLEMENT POWER TAKE OFF

1

47587072

HYDRAULIC HOSE,6.40 ID x 1120mm L

ASSY, to Front Brake Valve, 6.40 ID x 1120mm, Incl 2, 3 (Qty 2)

1шт.

2

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

3

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

4

47586798

HYDRAULIC HOSE,6.40 ID x 925mm L

ASSY, from Front Brake Valve, 6.40 ID x 925mm, Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Hose, Incl in 4

1шт.

6

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

7

84565992

BRACKET

1шт.

8

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

9

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

10

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 3 (Qty 1), 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

1шт.

12

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

13

87317453

ELBOW,90 Degree, 11/16" - 16, ORFS, Blkhd

1шт.

14

47592039

ELBOW UNION

1шт.

15

87010704

BHD LOCK NUT,11/16"-16

1шт.

16

86639083

BHD LOCK NUT,13/16"-16 ORFS, Bulkhead

1шт.
