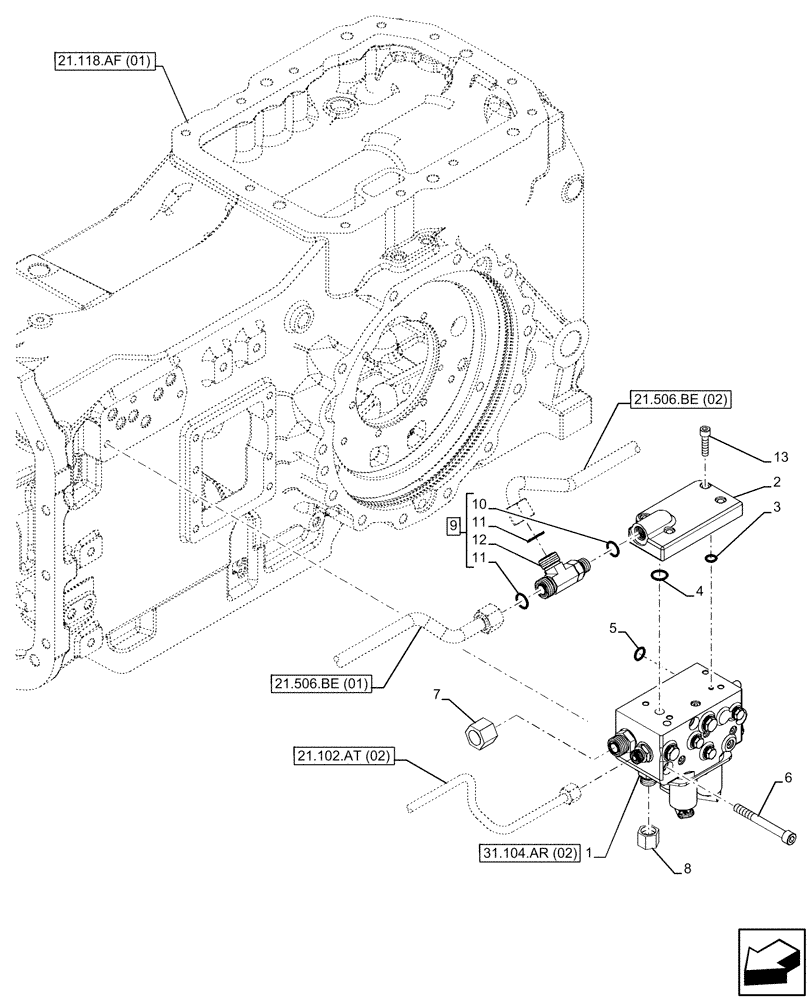

Запчасти Case IH MAXXUM 135 (31.104.AR[01]) - VAR - 396247, 758442, 758549 - PTO CLUTCH, CONTROL VALVE (31) - IMPLEMENT POWER TAKE OFF

1

84336448

CONTROL VALVE

ASSY

1шт.

2

5197061

PLATE

1шт.

3

14456980

O-RING,10.77mm ID x 2.62mm

2шт.

4

14457380

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

5

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

6шт.

6

14308521

HEX SOC SCREW,M10 x 1.25 x 90mm, Cl 8.8

3шт.

7

9840576

CAP,1" - 14 ORFS

1шт.

8

9840575

CAP,13/16" - 16 ORFS

1шт.

9

5197177

TEE,1"-14 ORFS x 1"-14 ORFS x M18 x 1.5 ORB

ASSY, Incl 10 - 12

1шт.

10

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

11

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

12

NSS

NOT SOLD SEPARAT

Tee, Incl in 9

1шт.

13

14306521

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8

4шт.
