(27.106.AC[03]) - VAR - 391223, 758538, 758539 - FINAL DRIVE, DIFFERENTIAL, LOCK

Запчасти Case IH MAXXUM 135 (27.106.AC[03]) - VAR - 391223, 758538, 758539 - FINAL DRIVE, DIFFERENTIAL, LOCK (27) - REAR AXLE SYSTEM

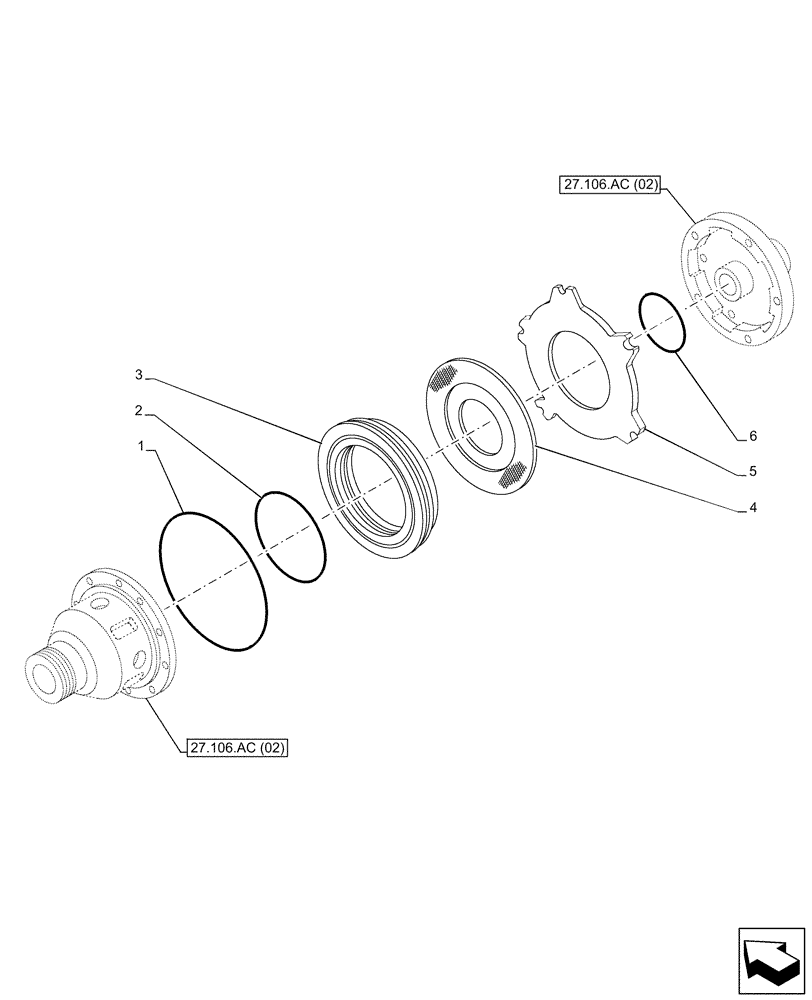

Схема запчастей Case IH MAXXUM 135 - (27.106.AC[03]) - VAR - 391223, 758538, 758539 - FINAL DRIVE, DIFFERENTIAL, LOCK (27) - REAR AXLE SYSTEM
5
3
6
4
27.106.ac (02)
1
27.106.ac (02)
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

14462681

O-RING,7.237" ID x 0.103" Width

1шт.

2

14461981

O-RING,5.487" ID x 0.103" Width

1шт.

3

5191926

PISTON

1шт.

4

5191924

CLUTCH PLATE

6шт.

5

5191925

CLUTCH DRIVING PLATE

6шт.

6

5191927

SEALING RING,67mm ID x 75mm OD x 2.60mm

2шт.
