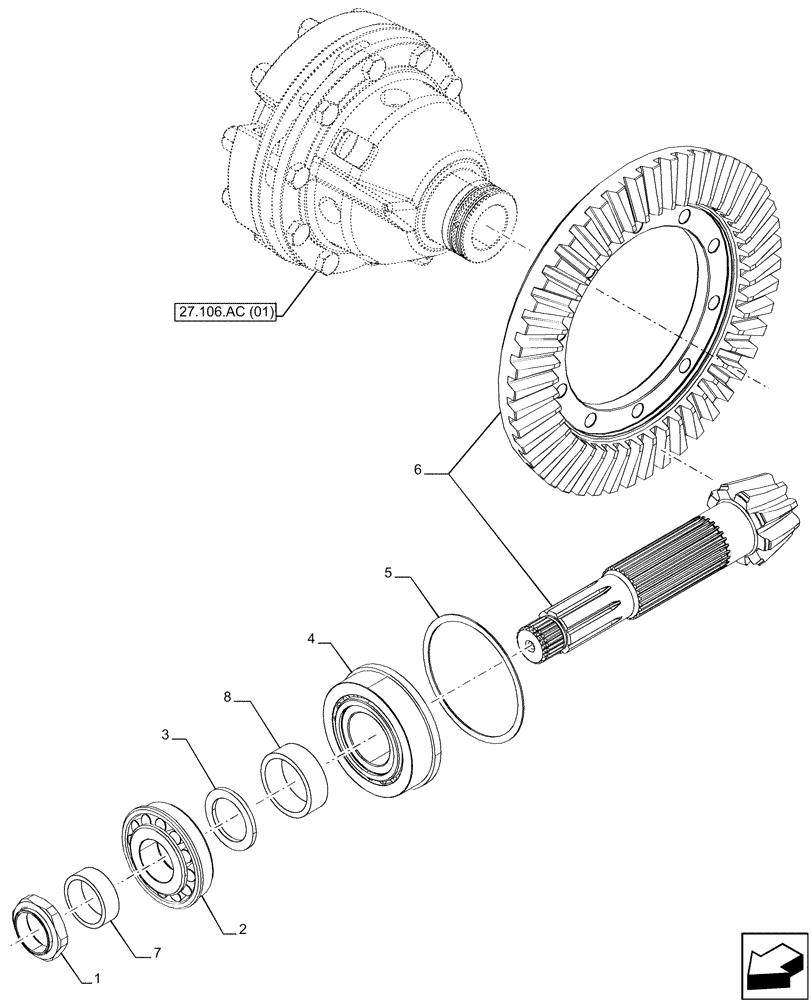

Запчасти Case IH MAXXUM 135 (27.106.AB) - VAR - 390801, 396247, 758437, 758440, 758442, 758549 - REAR AXLE, BEVEL PINION (27) - REAR AXLE SYSTEM

1

5147930

RING NUT,M45 x 1.5

1шт.

2

5138727

BEARING ASSY,45mm ID x 106mm OD x 27.25mm W

1шт.

3

5148557

SHIM,45.5mm ID x 64mm OD x 4.4mm Thk

1шт.

3

5148558

SHIM,45.5mm ID x 64mm OD x 4.5mm Thk

1шт.

3

5148559

SHIM,45.5mm ID x 64mm OD x 4.6mm Thk

1шт.

3

5148560

SHIM,45.50mm ID x 64.00mm OD x 4.70mm T

1шт.

3

5148561

SHIM,45.5mm ID x 64mm OD x 4.8mm Thk

1шт.

3

5148562

SHIM,45.50mm ID x 64.00mm OD x 4.85mm T

1шт.

3

5148563

SHIM,45.50mm ID x 64.00mm OD x 4.90mm T

1шт.

3

5148564

SHIM,45.50mm ID x 64.00mm OD x 4.95mm T

1шт.

3

5148565

SHIM,45.50mm ID x 64.00mm OD x 5.00mm T

1шт.

3

5148566

SHIM,45.50mm ID x 64.00mm OD x 5.05mm T

1шт.

3

5148567

SHIM,45.5mm ID x 64mm OD x 5.1mm Thk

1шт.

3

5148568

SHIM,45.50mm ID x 64.00mm OD x 5.15mm T

1шт.

3

5148569

SHIM,45.50mm ID x 64.00mm OD x 5.20mm T

1шт.

3

5148570

SHIM,45.5mm ID x 64mm OD x 5.25mm Thk

1шт.

3

5148571

SHIM,45.5mm ID x 64mm OD x 5.3mm Thk

1шт.

3

5148572

SHIM,45.5mm ID x 64mm OD x 5.35mm Thk

1шт.

3

5148573

SHIM,45.5mm ID x 64mm OD x 5.4mm Thk

1шт.

3

5148574

SHIM,45.5mm ID x 64mm OD x 5.45mm Thk

1шт.

3

5148575

SHIM,45.5mm ID x 64mm OD x 5.5mm Thk

1шт.

3

5148576

SHIM,45.5mm ID x 64mm OD x 5.5mm Thk

1шт.

3

5148577

SHIM,45.5mm ID x 64mm OD x 5.6mm Thk

1шт.

3

5148578

SHIM,45.5mm ID x 64mm OD x 5.65mm Thk

1шт.

3

5148579

SHIM,45.5mm ID x 64mm OD x 5.7mm Thk

1шт.

3

5148580

SHIM,45.5mm ID x 64mm OD x 5.75mm Thk

1шт.

3

5148581

SHIM,45.5mm ID x 64mm OD x 5.8mm Thk

1шт.

3

5148582

SHIM,45.5mm ID x 64mm OD x 5.85mm Thk

1шт.

3

5148583

SHIM,45.5mm ID x 64mm OD x 5.9mm Thk

1шт.

3

5148584

SHIM,45.5mm ID x 64mm OD x 5.95mm Thk

1шт.

3

5148585

SHIM,45.5mm ID x 64mm OD x 6mm Thk

1шт.

3

5148586

SHIM,45.5mm ID x 64mm OD x 6.05mm Thk

1шт.

3

5148587

SHIM,45.5mm ID x 64mm OD x 6.1mm Thk

1шт.

3

5148588

SHIM,45.5mm ID x 64mm OD x 6.15mm Thk

1шт.

3

5148589

SHIM,45.5mm ID x 64mm OD x 6.15mm Thk

1шт.

3

5148590

SHIM,45.5mm ID x 64mm OD x 6.3mm Thk

1шт.

3

5148591

SHIM,45.5mm ID x 64mm OD x 6.4mm Thk

1шт.

3

5148592

SHIM,45.5mm ID x 64mm OD x 6.5mm Thk

1шт.

3

5148593

SHIM,45.5mm ID x 64mm OD x 6.6mm Thk

1шт.

4

5128721

TAPERED BEARING,55mm ID x 120mm OD x 45.5mm W

1шт.

5

5128734

SHIM,120.1mm ID x 134mm OD x 1.4mm Thk

1шт.

6

47605288

BEVEL GEAR,9T/ 47T

Ratio 9/47

1шт.

7

5192043

SPACER

1шт.

Spacer of Bevel Pinion Bearing W/O Creeper

1шт.

8

5198801

SPACER

1шт.

Spacer Bevel Pinion W/O PTO

1шт.
