(27.100.AI[01]) - VAR - 396247, 758442, 758549 - DIFFERENTIAL, LUBRICATION LINE

Запчасти Case IH MAXXUM 135 (27.100.AI[01]) - VAR - 396247, 758442, 758549 - DIFFERENTIAL, LUBRICATION LINE (27) - REAR AXLE SYSTEM

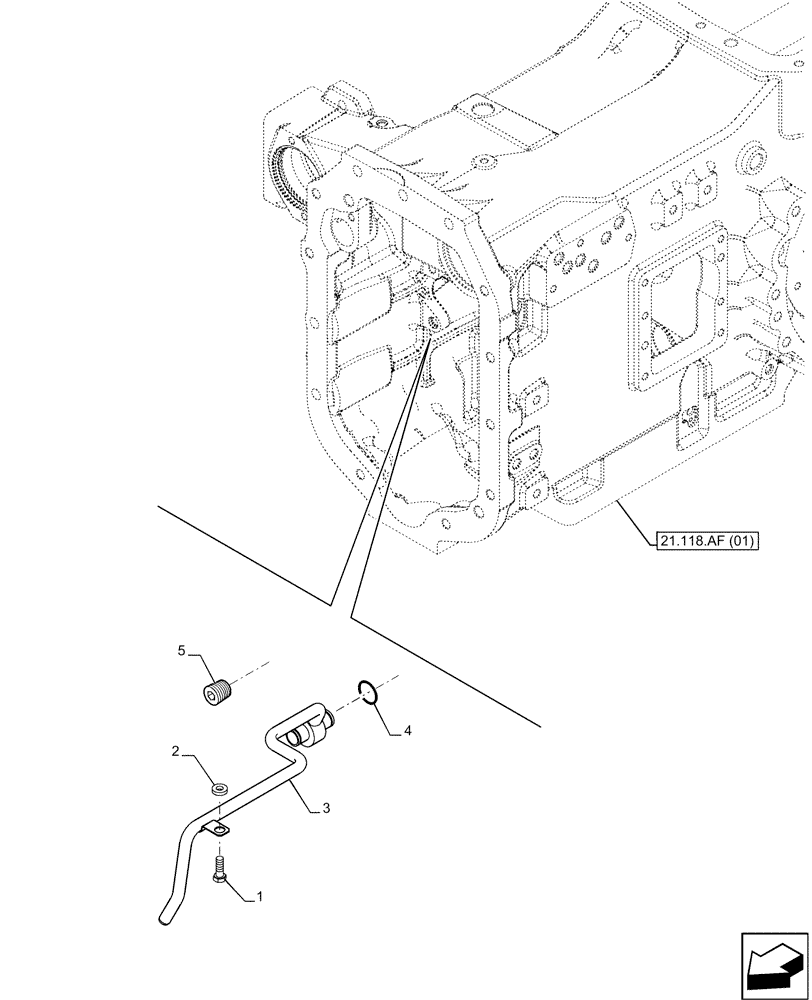

Схема запчастей Case IH MAXXUM 135 - (27.100.AI[01]) - VAR - 396247, 758442, 758549 - DIFFERENTIAL, LUBRICATION LINE (27) - REAR AXLE SYSTEM
4
3
21.118.af (01)
2
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

15540124

SCREW,Hex, M12 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

2

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.

3

47136932

TUBE

Differential

1шт.

4

14453180

O-RING,12.42mm ID x 1.78mm

2шт.

5

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

1шт.
