Запчасти Case IH MAXXUM 135 (25.100.AI[01]) - VAR - 390409, 758421 - AXLE SUPPORT, ARTICULATION (25) - FRONT AXLE SYSTEM

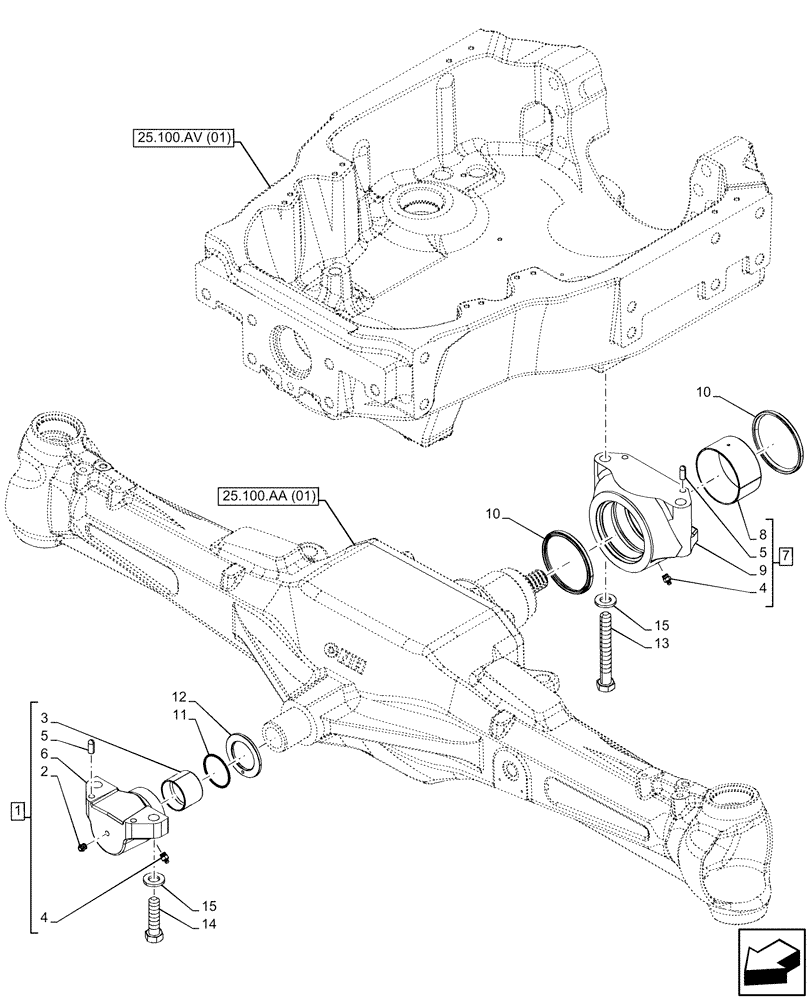

Схема запчастей Case IH MAXXUM 135 - (25.100.AI[01]) - VAR - 390409, 758421 - AXLE SUPPORT, ARTICULATION (25) - FRONT AXLE SYSTEM
25.100.aa (01)
2
13
7
4
1
10
5
5
9
8
4
15
14
15
12
10
11
6
3
25.100.av (01)

Артикул

Название

Примечание

Количество

1

87311589

TRUNNION

ASSY, Incl 2 - 6

1шт.

2

13411117

VALVE PRESSURE RELIE,M10, Black

M10

1шт.

3

5101112

BUSHING,52.72mm ID x 57.16mm OD x 42mm L

1шт.

4

13407211

LUBE NIPPLE,M10 x 1

1шт.

5

10837710

DOWEL,M10 x 25

2шт.

6

87311590

TRUNNION

1шт.

7

87515300

TRUNNION

ASSY, Incl 4, 5, 8, 9

1шт.

8

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

1шт.

9

NSS

NOT SOLD SEPARAT

Trunnion, Incl in 7

1шт.

10

5140455

SEALING RING

2шт.

11

14471380

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

12

5140456

RING,52.8mm ID x 80mm OD x 5mm Thk

1шт.

13

15223534

BOLT,Hex, M18 x 140mm, Cl 10.9, Full Thd

2шт.

14

15222234

BOLT,Hex, M18 x 70mm, Cl 10.9, Full Thd

2шт.

15

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

4шт.

Выбрано товаров: 15
