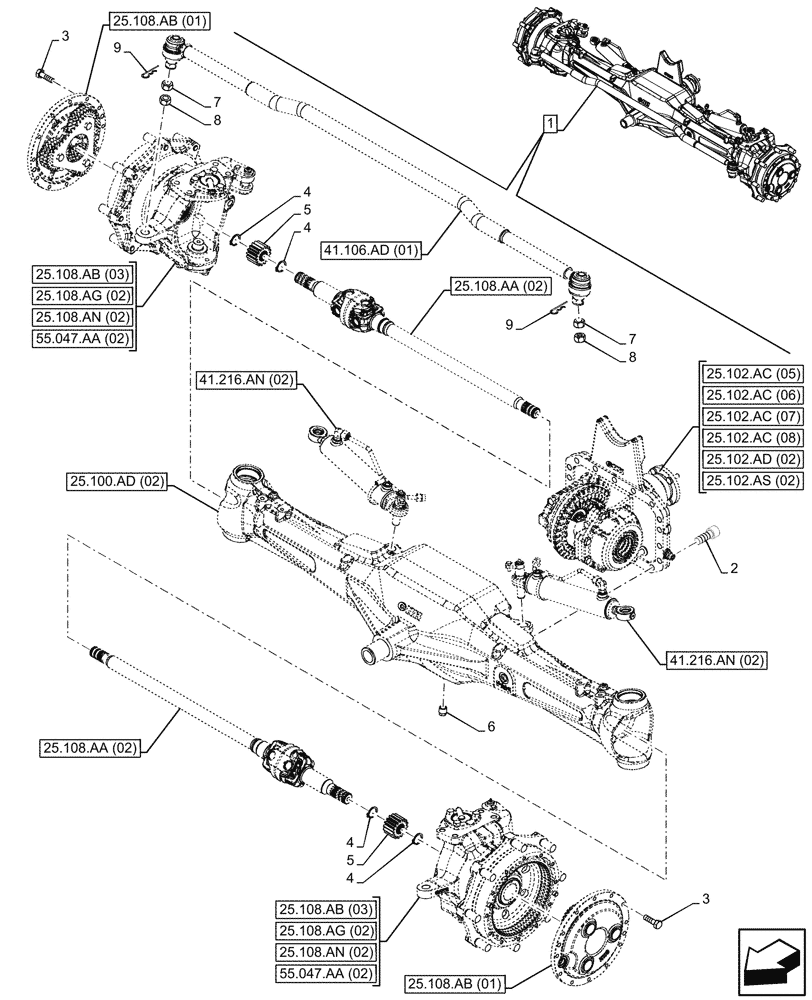

Запчасти Case IH MAXXUM 135 (25.100.AA[02]) - VAR - 758422 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK & STRG SENSOR (25) - FRONT AXLE SYSTEM

1

84181140

LIVE FRONT AXLE

ASSY, Incl 2 - 9

1шт.

See also Axle Components in Figure 25.100.AD (02), 25.108.AA (02), 25.108.AB (03), 25.108.AG (02), 25.108.AN (02), 41.216.AN (02), 55.047.AA (02)

1шт.

2

14313774

HEX SOC SCREW,M16 x 1.5 x 40mm, Cl 12.9, Full Thd

4шт.

3

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.

4

5140018

SNAP RING,M30, Ext

4шт.

5

5145501

SUN GEAR,16T

Z 16

2шт.

Z 16

1шт.

6

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

7

12576014

NUT,Prevailing Torque, M18, 1.5mm Pitch, 16.00mm High, Cl 04, DAC

Use for all Ball Except for Ehrenreich Ball

2шт.

Use for all Ball Except for Ehrenreich Ball

1шт.

8

10724614

SLOTTED NUT,Thin Slotted, M18, 1.5mm Pitch, 15.00mm High, R80, DAC

Use only for Ehrenreich Ball

2шт.

Use only for Ehrenreich Ball

1шт.

9

10733804

COTTER PIN,4.00mm Dia x 16.00mm

Use only for Ehrenreich Ball

2шт.

Use only for Ehrenreich Ball

1шт.
