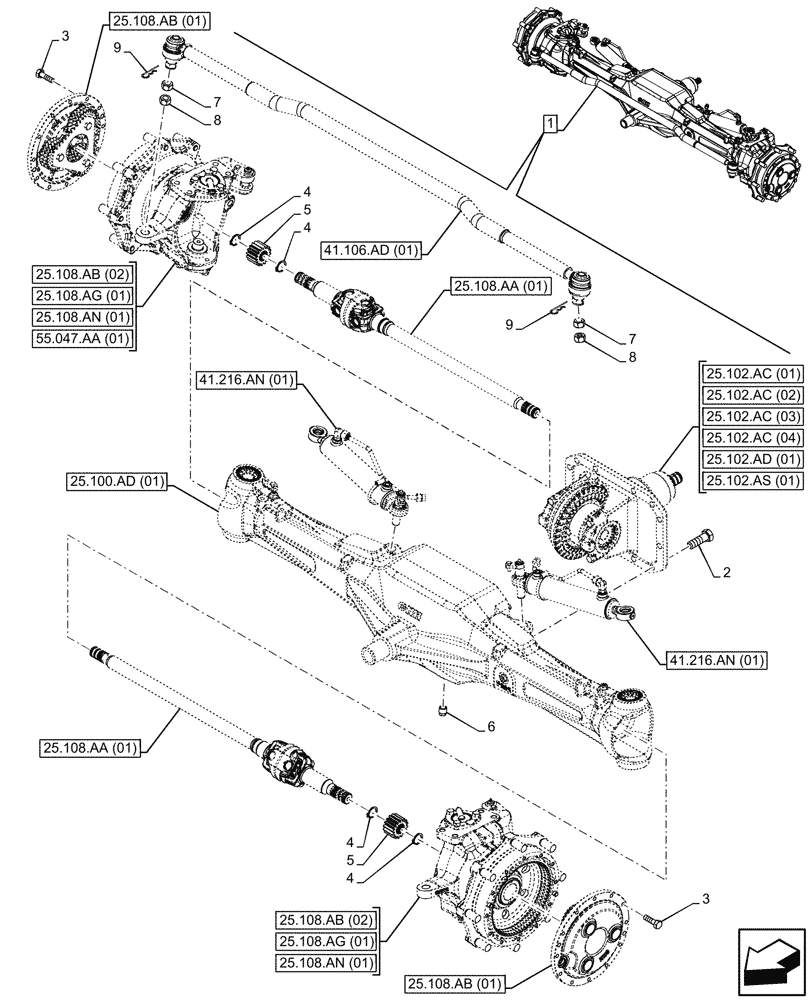

Запчасти Case IH MAXXUM 135 (25.100.AA[01]) - VAR - 390409, 758421 - FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, W/O WATERPROOF (25) - FRONT AXLE SYSTEM

1

84180953

LIVE FRONT AXLE

ASSY, Incl 2 - 9

1шт.

2

16217734

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

10шт.

3

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.

4

5140018

SNAP RING,M30, Ext

4шт.

5

5145501

SUN GEAR,16T

Z 16

2шт.

6

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

7

12576014

NUT,Prevailing Torque, M18, 1.5mm Pitch, 16.00mm High, Cl 04, DAC

2шт.

Use for all Ball Except for Ehrenreich Ball

1шт.

8

10724614

SLOTTED NUT,Thin Slotted, M18, 1.5mm Pitch, 15.00mm High, R80, DAC

2шт.

Use only for Ehrenreich Ball

1шт.

9

10733804

COTTER PIN,4.00mm Dia x 16.00mm

2шт.

Use only for Ehrenreich Ball

1шт.
