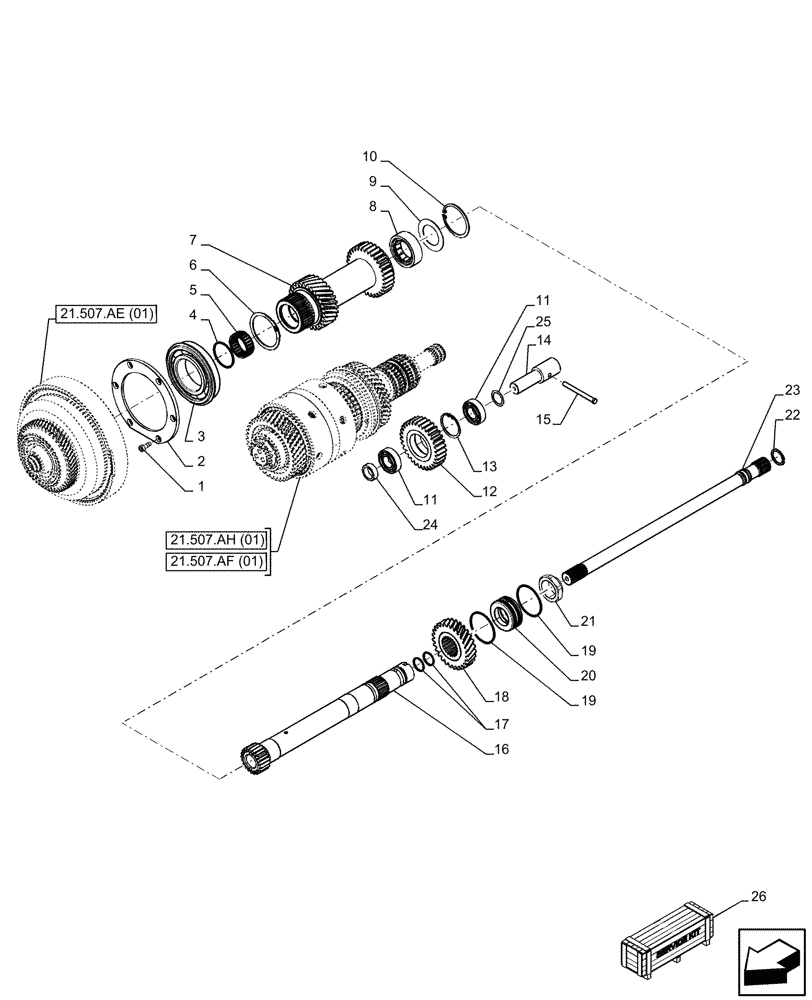

Запчасти Case IH MAXXUM 135 (21.507.AH[02]) - VAR - 396247, 758442, 758549 - TRANSMISSION, REVERSER (21) - TRANSMISSION

1

13028534

SCREW,Hex, M8 x 1.25 x 20mm L

6шт.

2

87471779

RING,131.5mm ID x 187mm OD x 8mm Thk

1шт.

3

87588889

BALL BEARING,75.00mm x 130.00mm x 25.00mm

1шт.

4

5160929

SNAP RING,55.3mm OD x 1.5mm Width

1шт.

5

84560157

NEEDLE BEARING,45mm ID x 53mm OD x 20mm W

1шт.

6

47489944

SNAP RING

1шт.

7

47589883

SHAFT

1шт.

8

84560159

ROLLER BEARING,44mm ID x 72mm OD x 23mm W

1шт.

9

84575478

SEALING WASHER

1шт.

10

11061576

SNAP RING,M72, Int

1шт.

11

20715580

BALL BEARING,25 mm ID x 52 mm OD x 15 mm

2шт.

12

84560102

GEAR

1шт.

13

11060576

SNAP RING,M52, Int

1шт.

14

87363209

PIN,25mm OD x 67mm L

1шт.

15

84577579

PIN,8mm OD x 91mm L

1шт.

16

84560134

PRIMARY SHAFT

1шт.

17

84580204

OIL SEAL,Split, 26.2mm ID x 30mm OD x 2.05mm Thk

2шт.

18

84560091

GEAR

1шт.

19

87588681

SEALING RING,63.81mm ID x 67.81mm OD x 2.87mm Thk

2шт.

20

84572303

MANIFOLD

1шт.

21

84289762

NUT,M40,1.5mm Pitch

1шт.

22

11067870

LOCKING RING

1шт.

23

84560106

SHAFT

1шт.

24

47537103

SPACER,25mm ID x 34mm OD x 11.1mm L

1шт.

25

47537049

SHIM,25mm ID x 34mm OD x 1mm Thk

1шт.

26

47798576

GEARBOX

Transmission ASSY, Incl 1 - 25

1шт.

See all the Included Components by Searching for the PN 47798576

1шт.
