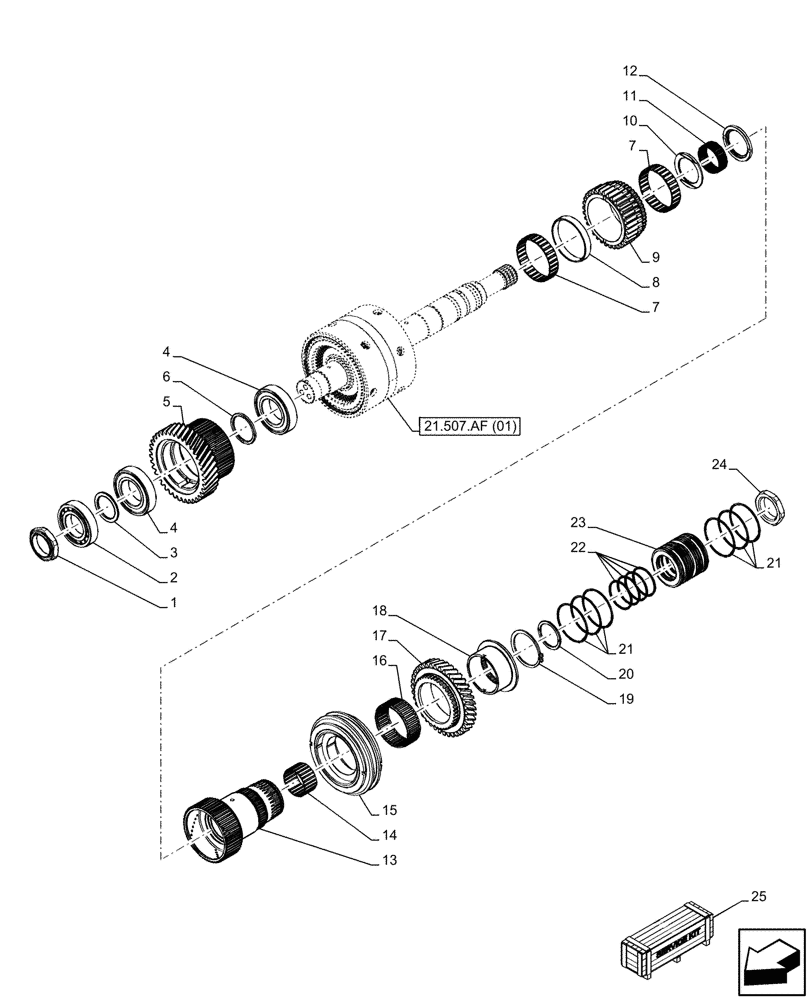

Запчасти Case IH MAXXUM 135 (21.507.AH[01]) - VAR - 396247, 758442, 758549 - TRANSMISSION, SYNCHRONIZER (21) - TRANSMISSION

1

84403705

NUT,Hex, M45 x 1.5, 13 Thd

1шт.

2

84374621

ROLLER BEARING,45mm ID x 85mm OD x 19mm Thk

1шт.

3

84358262

SPACER,45mm ID x 58mm OD x 3.5mm L

1шт.

4

87591960

BALL BEARING,50mm ID x 90mm OD x 20mm W

2шт.

5

84559726

HUB

1шт.

6

84578095

SPACER,50mm ID x 60mm OD x 4mm L

1шт.

7

87588904

NEEDLE BEARING,80mm ID x 86mm OD x 20mm W

2шт.

8

84576854

SPACER

1шт.

9

84560087

GEAR

1шт.

10

84335080

SPACER,50mm ID x 69mm OD x 5mm L

1шт.

11

5162254

NEEDLE BEARING,50mm ID x 55mm OD x 20mm W

1шт.

12

84560136

SNAP RING

1шт.

13

84559252

GEAR SHAFT

1шт.

14

87588887

NEEDLE BEARING,50mm ID x 55mm OD x 30mm W

1шт.

15

84221359

SYNCHRONIZER,50T, 78mm OD, 40T, 105mm OD

1шт.

16

87588901

NEEDLE BEARING,80mm ID x 86mm OD x 30mm W

1шт.

17

84558198

GEAR

1шт.

18

84560088

SLEEVE,34T

1шт.

19

11070276

SNAP RING,M68, Ext

1шт.

20

87363217

SHAFT LOCK

1шт.

21

83911795

SEAL,Split, 70.76mm ID x 76.2mm OD x 2.13mm Thk

6шт.

22

14455080

O-RING,50.52mm ID x 1.78mm

4шт.

23

84356313

MANIFOLD

1шт.

24

87574919

NUT,Hex, M45 x 1.5, 13 Thd

1шт.

25

47798576

GEARBOX

Transmission ASSY, Incl 1 - 24

1шт.

See all the Included Components by Searching for the PN 47798576

1шт.
