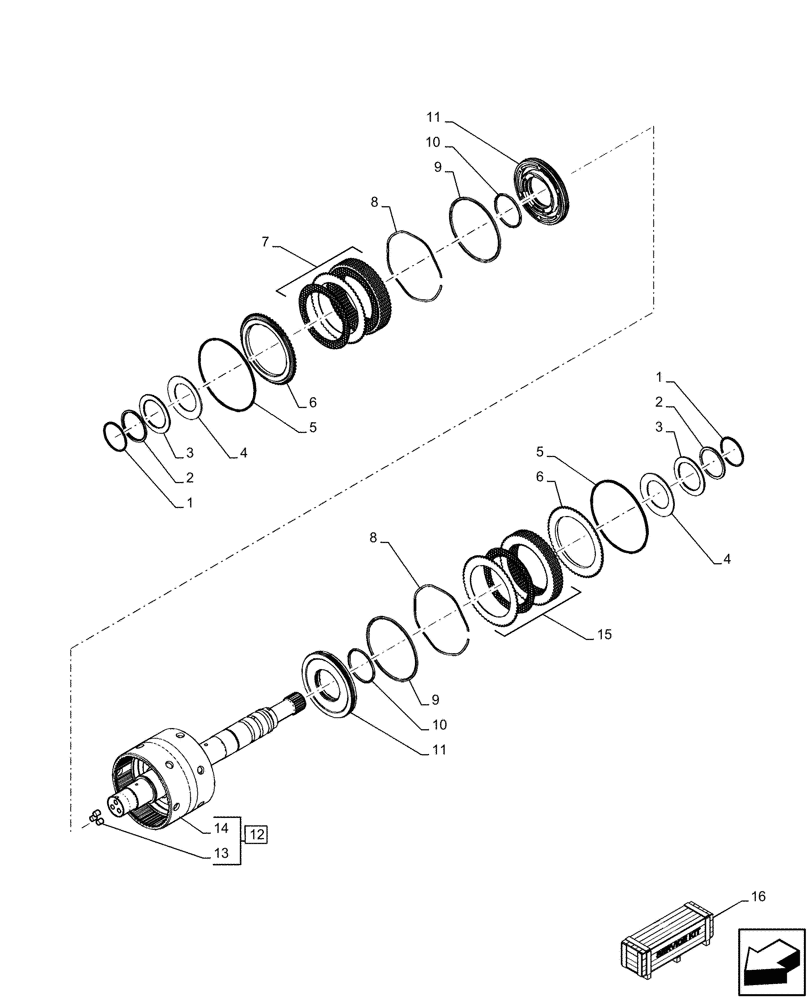

Запчасти Case IH MAXXUM 135 (21.507.AF[01]) - VAR - 396247, 758442, 758549 - TRANSMISSION, CLUTCH, DRIVE SHAFT (21) - TRANSMISSION

1

5175981

CIRCLIP,1.5mm Thk

2шт.

2

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

2шт.

3

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

2шт.

4

87547948

BELLEVILLE SPRING,60.8mm ID x 95mm OD x 2.3mm Thk

14шт.

5

47132782

SNAP RING,3mm Thk, Int

2шт.

6

47132780

THRUST PLATE,60T, 154.75mm OD

2шт.

7

84569543

CLUTCH PACK

1шт.

8

84572042

BELLEVILLE SPRING

15шт.

9

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

2шт.

10

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

2шт.

11

87547824

PISTON

2шт.

12

84559186

DRIVEN SHAFT

ASSY, Incl 13, 14

1шт.

13

14536590

PLUG,10.00mm Dia x 19.80mm L

3шт.

14

NSS

NOT SOLD SEPARAT

Shaft, Incl in 12

1шт.

15

84559280

CLUTCH PACK

1шт.

16

47798576

GEARBOX

Transmission ASSY, Incl 1 - 15

1шт.

See all the Included Components by Searching for the PN 47798576

1шт.
