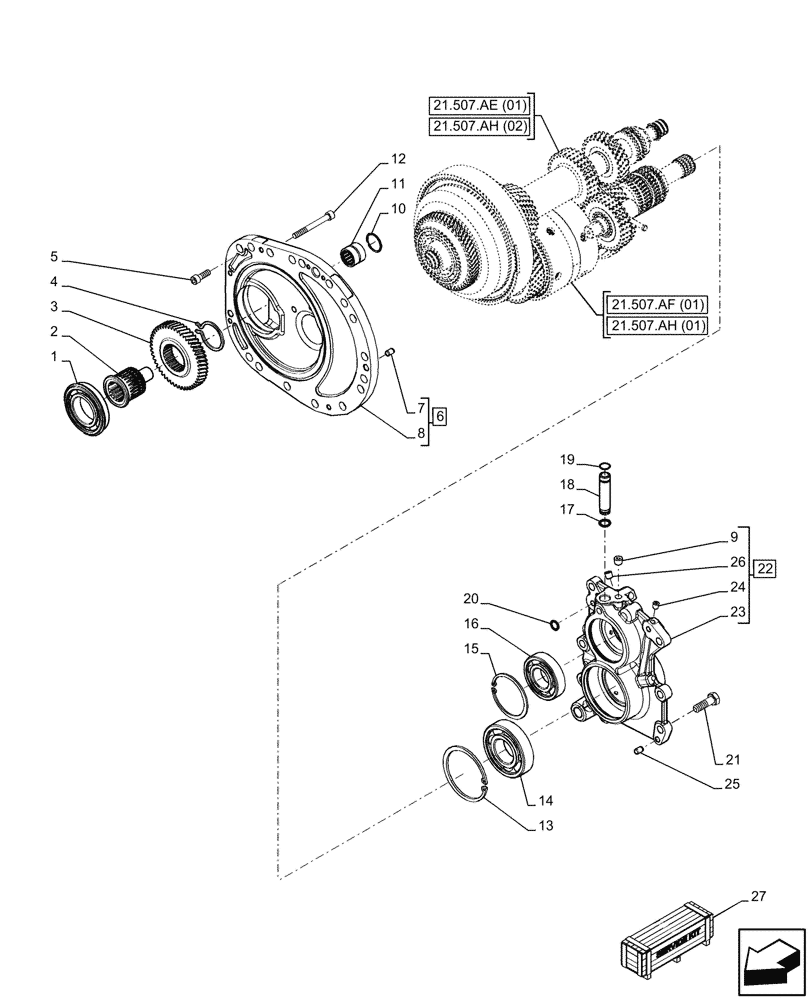

Запчасти Case IH MAXXUM 135 (21.507.AD[01]) - VAR - 396247, 758442, 758549 - TRANSMISSION, SHAFT, COVER (21) - TRANSMISSION

1

28996350

BALL BEARING,55.00mm x 100.00mm x 21.00mm

1шт.

2

47482179

SHAFT

1шт.

3

47482422

GEAR

1шт.

4

84594344

SNAP RING

1шт.

5

14307521

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

11шт.

6

84559834

COVER

ASSY, Incl 7, 8

1шт.

7

10839710

DOWEL,M10 x 15.00mm

4шт.

8

NSS

NOT SOLD SEPARAT

Flange, Incl in 6

1шт.

9

10269504

PLUG,M14 x 1.5

3шт.

10

87741854

SNAP RING,1.5mm Thk, Int

1шт.

11

87588905

NEEDLE BEARING,25.00mm x 27.00mm x 30.00mm

1шт.

12

14308521

HEX SOC SCREW,M10 x 1.25 x 90mm, Cl 8.8

2шт.

13

11075476

SNAP RING,M110, Int

1шт.

14

20229990

BALL BEARING,50mm ID x 110mm OD x 27mm W

1шт.

15

11062476

SNAP RING,M90, Int

1шт.

16

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

17

14453381

O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro

1шт.

18

84560105

TUBE

1шт.

19

14453480

O-RING,17.17mm ID x 1.78mm

1шт.

20

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

3шт.

21

11394324

BOLT,Hex, M14 x 45, 8.8, Full Thd

6шт.

22

84560111

MANIFOLD

ASSY, Incl 9, 23- 26

1шт.

23

NSS

NOT SOLD SEPARAT

Manifold, Incl in 22

1шт.

24

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

3шт.

25

10839710

DOWEL,M10 x 15.00mm

2шт.

26

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

1шт.

27

47798576

GEARBOX

Transmission ASSY, Incl 1 - 26

1шт.

See all the Included Components by Searching for the PN 47798576

1шт.
