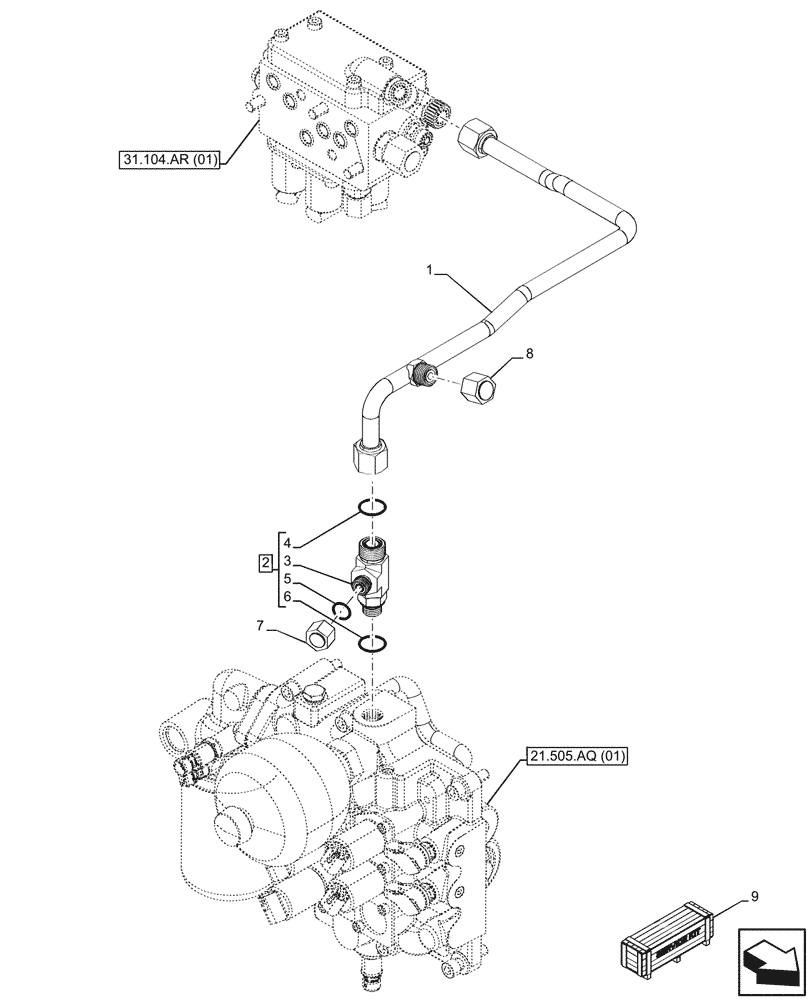

Запчасти Case IH MAXXUM 135 (21.506.BE[01]) - VAR - 396247, 758442, 758549 - TRANSMISSION LUBRICATION LINE (21) - TRANSMISSION

1

47643539

PIPE

from Transmission Control Valve to Service Block

1шт.

2

5185049

TEE,1"-14 ORFS x 11/16-16 ORFS x M18 x 1.5 ORB

ASSY, Incl 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

Tee, Incl in 2

1шт.

4

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

6

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

7

9625546

CAP,11/16" - 16 ORFS

1шт.

8

9840575

CAP,13/16" - 16 ORFS

1шт.

9

47798576

GEARBOX

Transmission ASSY, Incl 1 - 8

1шт.

See all the Included Components by Searching for the PN 47798576

1шт.
