Запчасти Case IH MAXXUM 135 (21.506.BC) - VAR - 396247, 758442, 758549 - TRANSMISSION, OIL FILTER (21) - TRANSMISSION

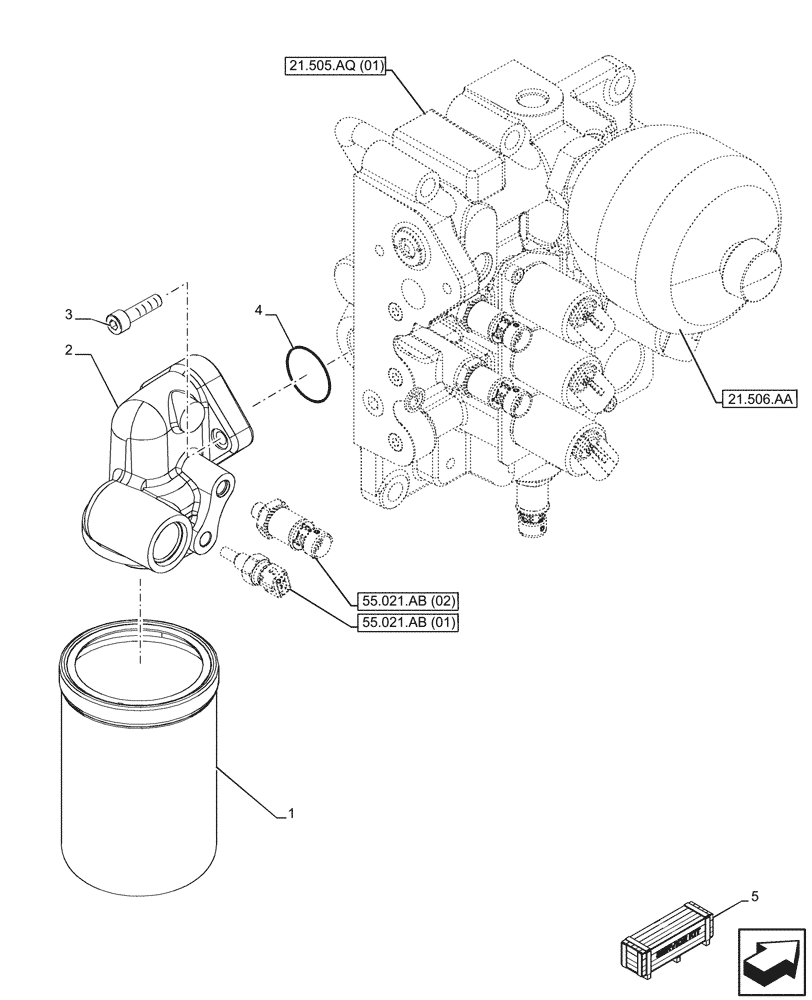

Схема запчастей Case IH MAXXUM 135 - (21.506.BC) - VAR - 396247, 758442, 758549 - TRANSMISSION, OIL FILTER (21) - TRANSMISSION
21.505.aq (01)
1
5
4
2
3
55.021.ab (01)
55.021.ab (02)
21.506.aa

Артикул

Название

Примечание

Количество

1

87588814

HYDRAULIC OIL FILTER,151mm L

on Transmission Contro Valve, 151mm

1шт.

2

84423350

FILTER HEAD

1шт.

3

14306520

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

4

86629540

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

5

47798576

GEARBOX

Transmission ASSY, Incl 1 - 4

1шт.

See all the Included Components by Searching for the PN 47798576

1шт.

Выбрано товаров: 6
