Запчасти Case IH MAXXUM 135 (21.506.AK) - VAR - 396247, 758442, 758549 - TRANSMISSION CONTROL VALVE, DRAIN LINE (21) - TRANSMISSION

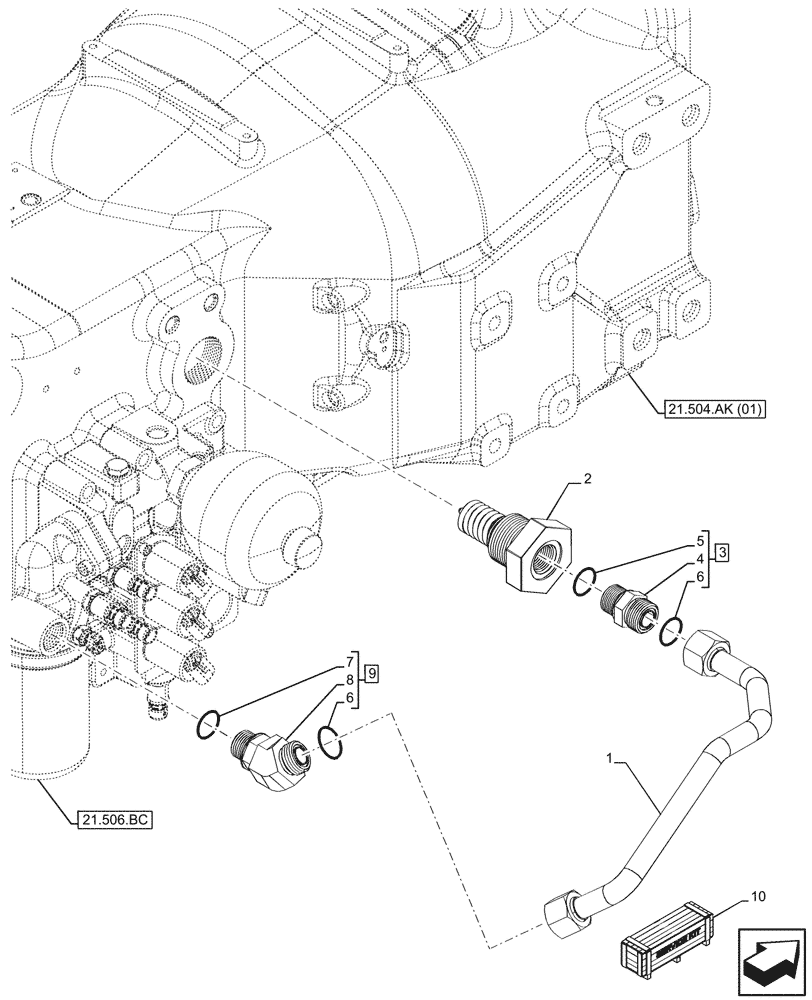

Схема запчастей Case IH MAXXUM 135 - (21.506.AK) - VAR - 396247, 758442, 758549 - TRANSMISSION CONTROL VALVE, DRAIN LINE (21) - TRANSMISSION
21.506.bc
5
8
1
6
7
2
6
4
10
3
9
21.504.ak (01)

Артикул

Название

Примечание

Количество

1

84470847

TUBE

Transmission Control

1шт.

2

84253191

VALVE PRESSURE RELIE

1шт.

3

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

ASSY, Incl 4 - 6 (Qty 1)

1шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

5

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

6

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

7

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

Elbow, Incl in 9

1шт.

9

86639055

45 ELBOW,45 Degree, 1 3/16"-12 ORFS x M27 x 2 ORB

ASSY, Incl 6 (Qty 1), 7, 8

1шт.

10

47798576

GEARBOX

Transmission ASSY, Incl 1 - 9

1шт.

See all the Included Components by Searching for the PN 47798576

1шт.

Выбрано товаров: 11
