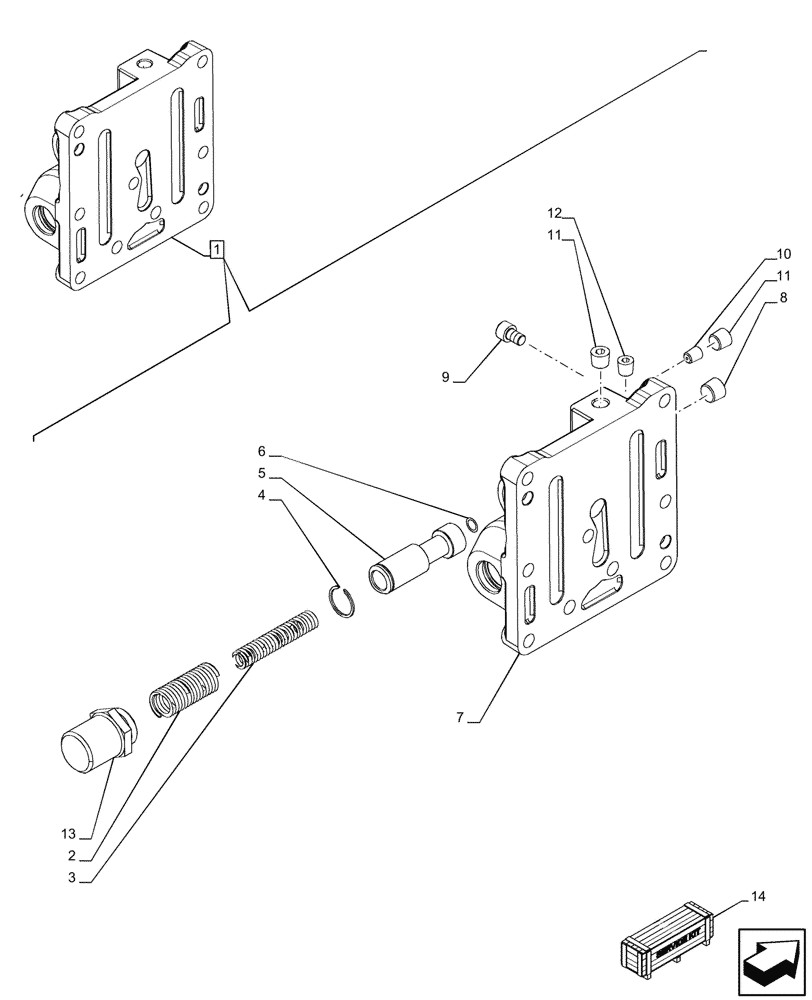

Запчасти Case IH MAXXUM 135 (21.505.AQ[03]) - VAR - 396247, 758442, 758549 - TRANSMISSION CONTROL VALVE, COMPONENTS (21) - TRANSMISSION

1

87719634

DISTRIBUTOR

ASSY, Incl 2 - 13

1шт.

2

5114391

SPRING,14mm OD x 100mm L

1шт.

3

5114392

SPRING,21.5mm OD x 84.5mm L

1шт.

4

5114438

SNAP RING,1.2mm Thk, Ext

1шт.

5

NSS

NOT SOLD SEPARAT

Spool, Incl in 6

1шт.

6

12638121

WASHER,5.15mm ID x 14mm OD x 1mm Thk

1шт.

7

NSS

NOT SOLD SEPARAT

Body, Incl in 6

1шт.

8

10269504

PLUG,M14 x 1.5

M14 x 1.5 x 11mm STL DAC

1шт.

9

14306120

HEX SOC SCREW,M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

10

87634955

ORIFICE,M8 x 1.25 x 2mm ID x 11mm L

1шт.

11

10269401

PLUG,Taper Thd, Hex Skt, M12 x 1.5 x 11mm, 4.8

2шт.

12

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

1шт.

13

5121313

PLUG,36mm OD

1шт.

14

47798576

GEARBOX

Transmission ASSY, Incl 1 - 13

1шт.

See all the Included Components by Searching for the PN 47798576

1шт.
