Запчасти Case IH MAXXUM 135 (21.505.AQ[02]) - VAR - 396247, 758442, 758549 - TRANSMISSION CONTROL VALVE (21) - TRANSMISSION

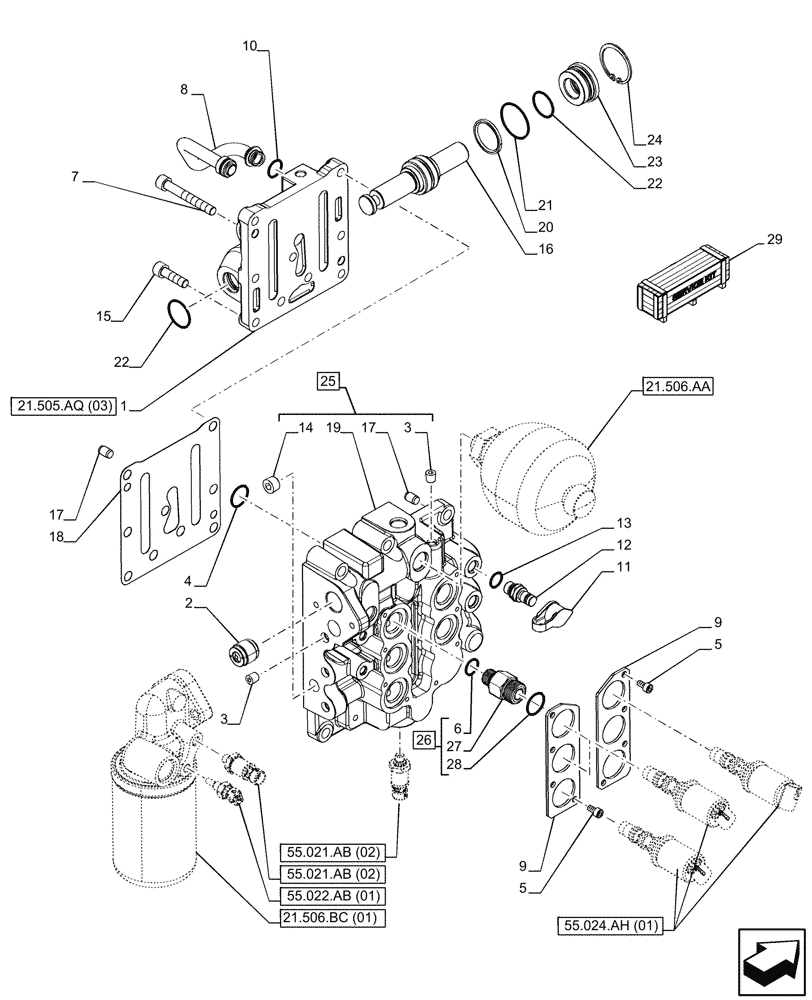

Схема запчастей Case IH MAXXUM 135 - (21.505.AQ[02]) - VAR - 396247, 758442, 758549 - TRANSMISSION CONTROL VALVE (21) - TRANSMISSION
21.506.bc (01)
7
9
13
22
3
3
29
21
20
6
8
27
17
12
25
4
17
5
1
15
26
2
9
24
5
19
14
11
16
23
18
10
28
22
21.505.aq (03)
55.021.ab (02)
55.021.ab (02)
55.024.ah (01)
21.506.aa
55.022.ab (01)

Артикул

Название

Примечание

Количество

1

87719634

DISTRIBUTOR

ASSY

1шт.

2

84323608

CHECK VALVE

1шт.

3

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

7шт.

4

14453480

O-RING,17.17mm ID x 1.78mm

1шт.

5

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

8шт.

6

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

7

14309124

SCREW,Hex Soc Hd, M10 x 1.25 x 75, 8.8

1шт.

8

87722691

TUBE

1шт.

9

87364740

MOUNTING PLATE

2шт.

10

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

11

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

2шт.

12

5185423

COUPLING

2шт.

13

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

14

10269601

PLUG,M16 x 1.5

M16 x 1.5 x 11mm STL ZND

1шт.

15

14307621

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.

16

84143472

SPOOL,24mm OD x 152mm L

1шт.

17

10839710

DOWEL,M10 x 15.00mm

4шт.

18

87725760

GASKET,0.5mm Thk

1шт.

19

NSS

NOT SOLD SEPARAT

Body, Incl in 25

1шт.

20

5175009

SEALING RING,34.55mm ID x 42.02mm OD x 3.2mm Thk

1шт.

21

14458680

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1шт.

22

81902618

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

2шт.

23

84378612

PLUG,42mm ID

1шт.

24

11060276

SNAP RING,M47, Int

1шт.

25

47542640

HYDRAULIC MANIFOLD

ASSY, Incl 14, 17, 19, 3

1шт.

26

47485621

HYD CONNECTOR

ASSY, Incl 6, 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

Connector, Incl in 26

1шт.

28

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

29

47798576

GEARBOX

Transmission ASSY, Incl 1 - 28

1шт.

See all the Included Components by Searching for the PN 47798576

1шт.

Выбрано товаров: 30
