Запчасти Case IH MAXXUM 135 (21.505.AG[03]) - VAR - 396247, 758442, 758549 - TRANSMISSION CONTROL, DISCHARGE, VALVE, LINE (21) - TRANSMISSION

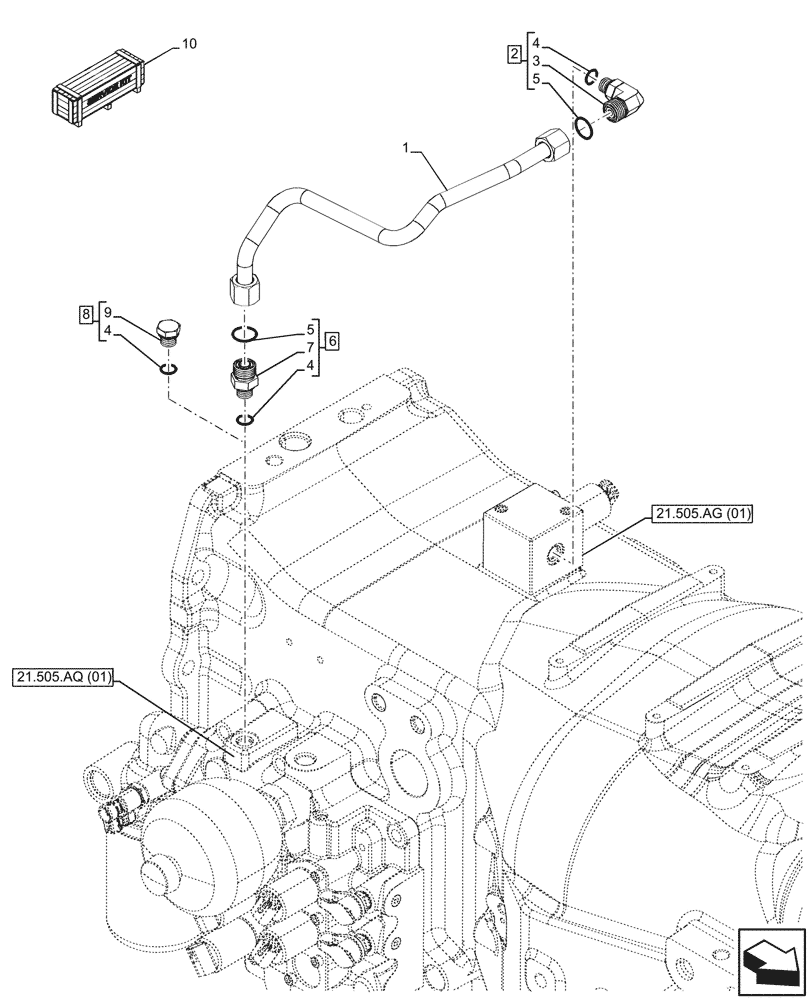

Схема запчастей Case IH MAXXUM 135 - (21.505.AG[03]) - VAR - 396247, 758442, 758549 - TRANSMISSION CONTROL, DISCHARGE, VALVE, LINE (21) - TRANSMISSION
21.505.aq (01)
5
1
6
2
9
4
7
3
5
4
8
4
10
21.505.ag (01)

Артикул

Название

Примечание

Количество

1

47546027

PIPE

Discharge

1шт.

2

86579689

ELBOW,90 Degree, 13/16" - 16 ORFS x M14 x 1.5 ORB

ASSY, Incl 3, 4 (Qty 1), 5 (Qty 1)

1шт.

3

NSS

NOT SOLD SEPARAT

Elbow, Incl in 2

1шт.

4

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

5

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

6

86579674

HYD CONNECTOR,13/16"-16 ORFS x M14 x 1.5 ORB

ASSY, Incl 4 (Qty 1), 5 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

8

86611704

PLUG,Hex, M14 x 1.5 ORB

ASSY, Incl 4 (Qty 1), 9

1шт.

Less Discharge Valve

1шт.

9

NSS

NOT SOLD SEPARAT

Plug, Incl in 8

1шт.

10

47798576

GEARBOX

Transmission ASSY, Incl 1 - 9

1шт.

See all the Included Components by Searching for the PN 47798576

1шт.

Выбрано товаров: 12
