(21.505.AG[02]) - VAR - 396247, 758442, 758549 - TRANSMISSION CONTROL, DISCHARGE, VALVE

Запчасти Case IH MAXXUM 135 (21.505.AG[02]) - VAR - 396247, 758442, 758549 - TRANSMISSION CONTROL, DISCHARGE, VALVE (21) - TRANSMISSION

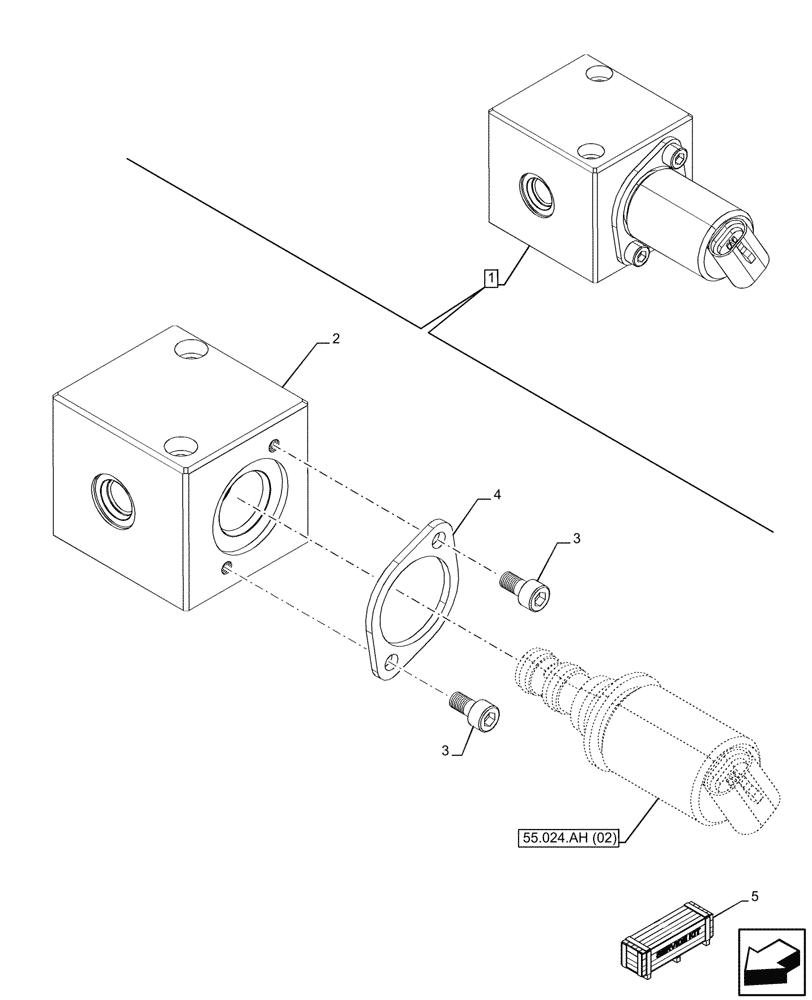

Схема запчастей Case IH MAXXUM 135 - (21.505.AG[02]) - VAR - 396247, 758442, 758549 - TRANSMISSION CONTROL, DISCHARGE, VALVE (21) - TRANSMISSION
55.024.ah (02)
3
5
2
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47582307

HYDRAULIC MANIFOLD

ASSY, Incl 2 - 4

1шт.

See Also Figure 55.024.AH 02

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

2шт.

4

5194826

BRACKET

1шт.

5

47798576

GEARBOX

Transmission ASSY, Incl 1 - 4

1шт.

See all the Included Components by Searching for the PN 47798576

1шт.
