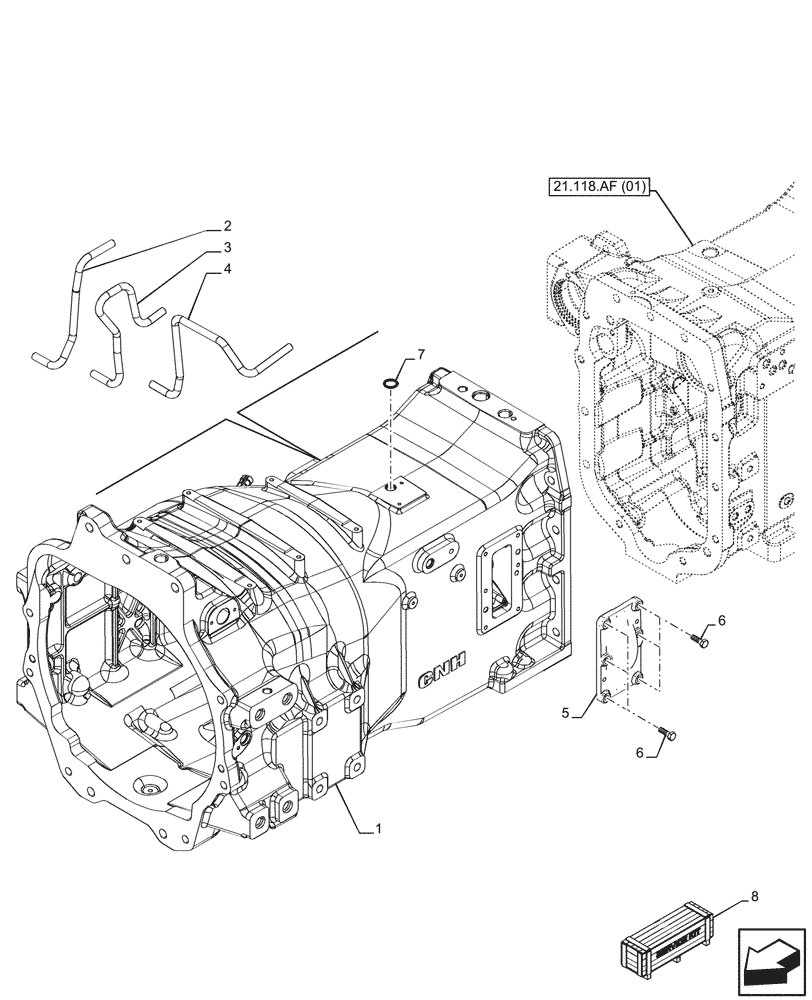

Запчасти Case IH MAXXUM 135 (21.504.AK[01]) - VAR - 396247, 758442, 758549 - TRANSMISSION HOUSING (21) - TRANSMISSION

1

47564675

HOUSING

1шт.

2

47510175

TUBE

1шт.

3

47510169

TUBE

Pressure

1шт.

4

47510164

TUBE

Pressure, Clutch A

1шт.

5

87362933

COVER

1шт.

6

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

7

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

8

47798576

GEARBOX

Transmission ASSY, Incl 1 - 7

1шт.

See all the Included Components by Searching for the PN 47798576

1шт.
