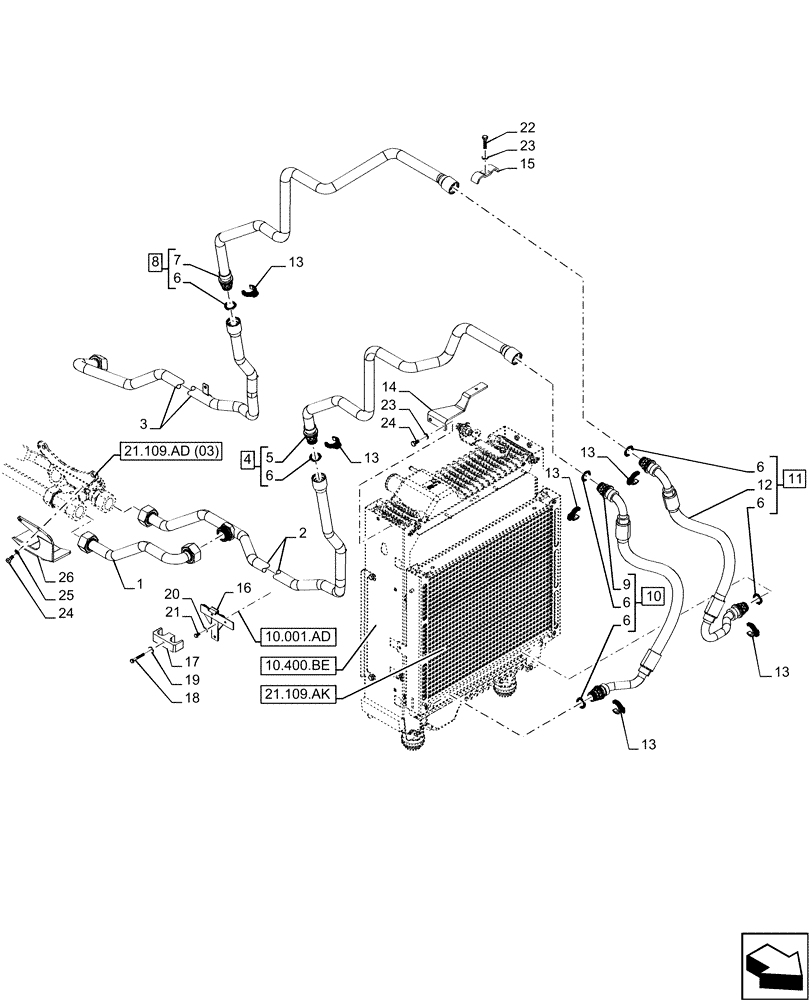

Запчасти Case IH MAXXUM 135 (21.109.AD[04]) - VAR - 396247, 758442, 758549 - TRANSMISSION, COOLING SYSTEM LINE (21) - TRANSMISSION

1

47569965

PIPE

By-Pass Thermostatic Valve

1шт.

2

47648916

PIPE

Cooler In

1шт.

3

47648918

PIPE

Cooler Out

1шт.

4

47589153

PIPE

ASSY, Incl 5, 6 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

Pipe, Incl in 4

1шт.

6

84156021

O-RING,24mm ID x 2.0mm

6шт.

7

NSS

NOT SOLD SEPARAT

Pipe, Incl in 8

1шт.

8

47589155

PIPE

ASSY, Incl 6 (Qty 1), 7

1шт.

9

NSS

NOT SOLD SEPARAT

Pipe, Incl in 10

1шт.

10

47589157

HOSE,19 mm ID x 740mm L

740mm, ASSY, Incl 6 (Qty 2), 9

1шт.

11

47579740

HOSE,19mm ID x 670mm L

670mm, ASSY, Incl 6 (Qty 2), 12

1шт.

12

NSS

NOT SOLD SEPARAT

Pipe, Incl in 11

1шт.

13

84156015

CLIP,28mm LP

6шт.

14

47475784

BRACKET

1шт.

15

84238526

CLAMP BRACKET

1шт.

16

47637190

BRACKET

1шт.

17

87608298

CLAMP BRACKET

1шт.

18

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

1шт.

19

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

1шт.

20

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

21

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

22

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

23

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

24

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

25

12638504

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

2шт.

26

47569958

COVER

1шт.
