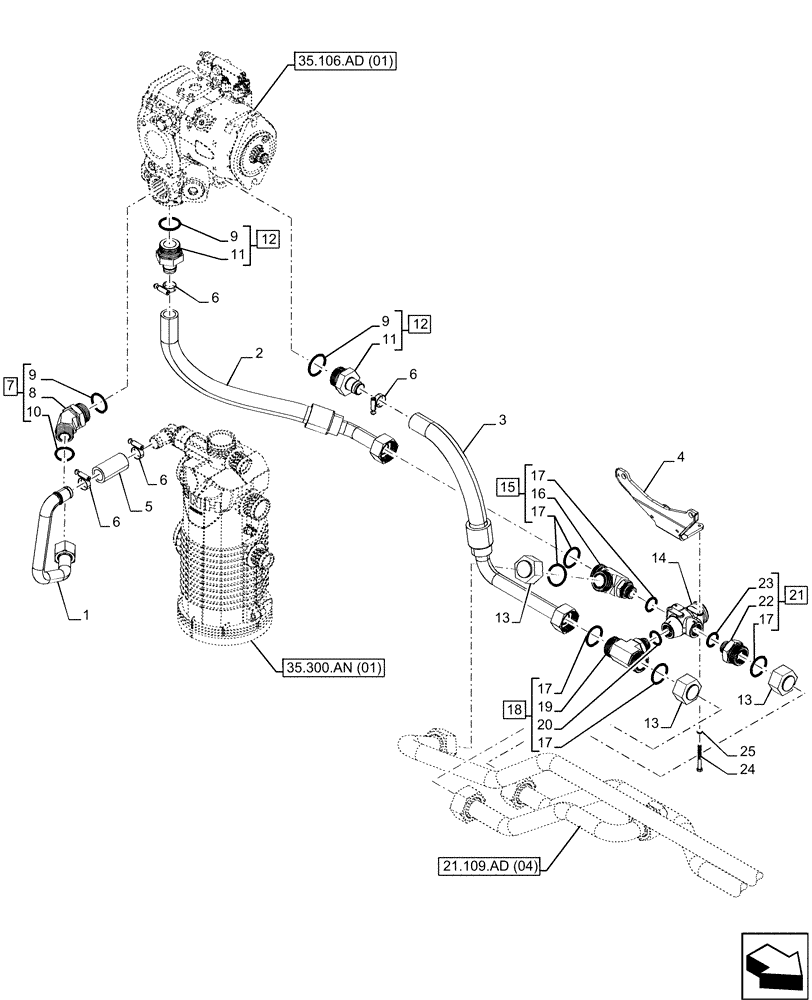

Запчасти Case IH MAXXUM 135 (21.109.AD[03]) - VAR - 396247, 758442, 758549 - TRANSMISSION, COOLING SYSTEM LINE (21) - TRANSMISSION

1

47744449

PIPE

G Port

1шт.

2

47731030

PIPE,25mm ID x 490mm L

from Thermostatic Valve to Pump, 25mm ID x 490mm

1шт.

3

47569952

PIPE,25mm ID x 355mm L

from Pump to Thermostatic Valve, 25mm ID x 355mm

1шт.

4

47744433

BRACKET

1шт.

5

87653735

HOSE,25mm ID x 70mm L

1шт.

6

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

4шт.

7

87653734

45 ELBOW,1-7/16"-12 ORFS x M42 x 2 ORB

ASSY, Incl 8, 9 (Qty 1), 10

1шт.

8

NSS

NOT SOLD SEPARAT

Elbow, Incl in 7

1шт.

9

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

3шт.

10

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

Adapter, Incl in 12

2шт.

12

84252094

HYD CONNECTOR,M42 X 2 x 22mm

ASSY, Incl 9 (Qty 1), 11 (Qty 1)

2шт.

13

9847691

CAP

3шт.

14

87751042

THERMOSTAT

1шт.

15

47569948

HYD CONNECTOR

ASSY, Incl 16, 17 (Qty 3)

1шт.

16

NSS

NOT SOLD SEPARAT

Tee, Incl in 15

1шт.

17

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

6шт.

18

47569947

HYD CONNECTOR

ASSY, Incl 17 (Qty 2), 19, 20

1шт.

19

NSS

NOT SOLD SEPARAT

Tee, Incl in 18

1шт.

20

164380

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

1шт.

21

47569946

HYD CONNECTOR

ASSY, Incl 17 (Qty 1), 22, 23

1шт.

22

NSS

NOT SOLD SEPARAT

Connector, Incl in 21

1шт.

23

82019813

SEAL,23.9mm ID x 29.2mm OD x 1.5mm Thk

1шт.

24

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

25

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

2шт.
