Запчасти Case IH MAXXUM 135 (21.109.AD[02]) - VAR - 396247, 758442, 758549 - TRANSMISSION, COOLING SYSTEM LINE (21) - TRANSMISSION

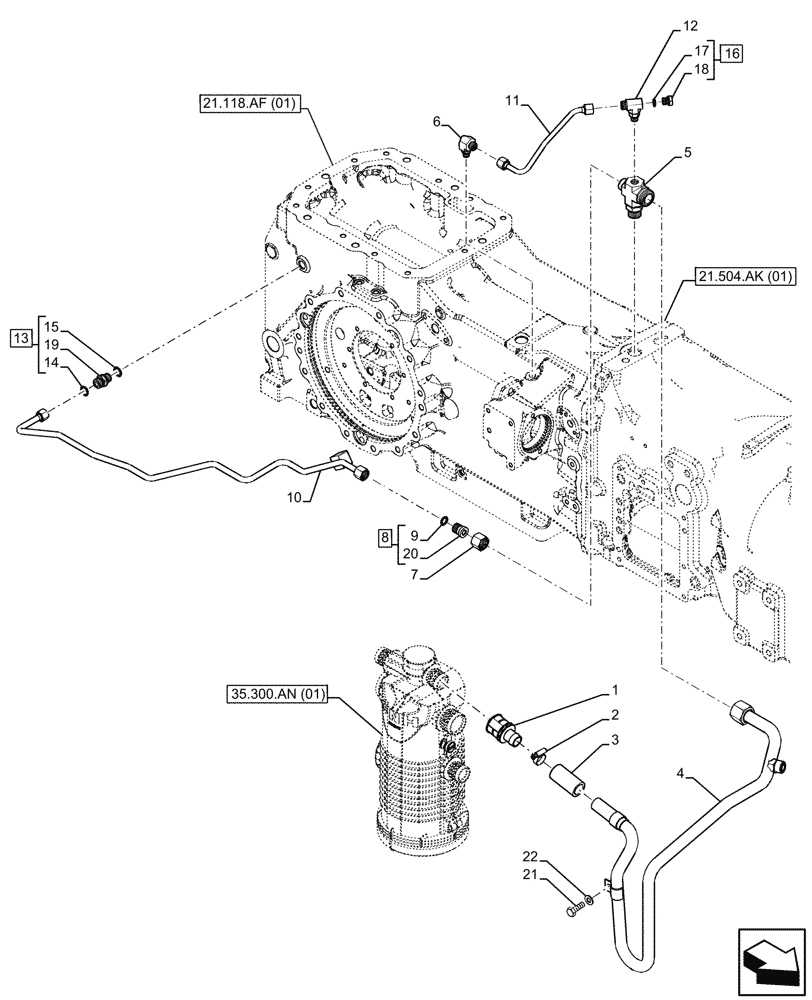

Схема запчастей Case IH MAXXUM 135 - (21.109.AD[02]) - VAR - 396247, 758442, 758549 - TRANSMISSION, COOLING SYSTEM LINE (21) - TRANSMISSION
21.118.af (01)
19
11
16
1
8
15
13
7
5
20
18
3
21
22
9
4
6
14
17
2
10
12
21.504.ak (01)
35.300.an (01)

Артикул

Название

Примечание

Количество

1

87381694

HYD CONNECTOR,21mm D x 22mm D

1шт.

2

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

1шт.

3

87653735

HOSE,25mm ID x 70mm L

1шт.

4

47826031

TUBE

from Filter

1шт.

5

47411875

PIPE FITTING,1"-14 x M27 x 2 x 1"7/16

1шт.

6

47416747

90 ELBOW

1шт.

7

85802819

TUBE NUT,1"-14 x 24mm L

1шт.

8

84989629

HYD CONNECTOR,13/16" - 16 ORB x 1" ORFS

ASSY, Reducer, Incl 9, 20

1шт.

9

NSS

NOT SOLD SEPARAT

Reducer, Incl in 8

1шт.

10

47436053

HYD TUBE

Lube to PTO

1шт.

11

47543192

HYD TUBE

Lube to Pump

1шт.

12

84371830

TEE,11/16"-16 ORFS x M14 x 1.5 ORB x M14 x 1.5

1шт.

13

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

ASSY, Incl 14, 15, 19

1шт.

14

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

15

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

16

86611704

PLUG,Hex, M14 x 1.5 ORB

ASSY, Incl 17, 18

1шт.

17

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

18

NSS

NOT SOLD SEPARAT

Plug, Incl in 16

1шт.

19

NSS

NOT SOLD SEPARAT

Connector, Incl in 13

1шт.

20

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

10902324

BOLT,Hex, M6 x 18mm, Cl 8.8, Full Thd

1шт.

22

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

Выбрано товаров: 22
