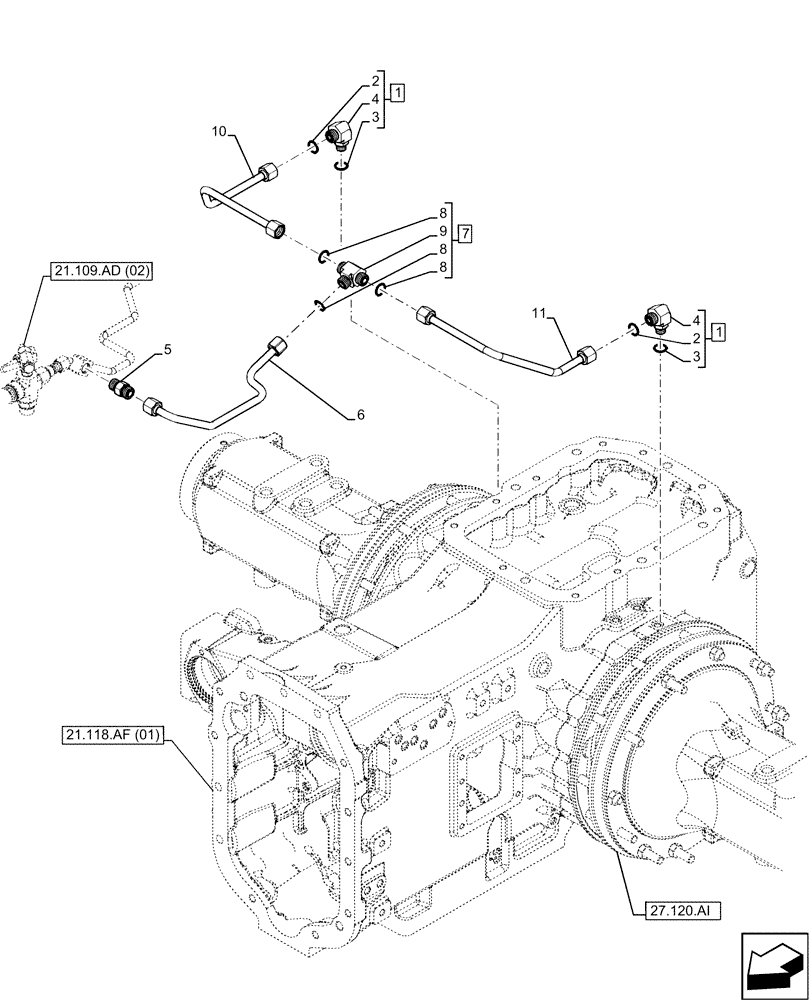

Запчасти Case IH MAXXUM 135 (21.109.AD[01]) - VAR - 396247, 758442, 758549 - TRANSMISSION, COOLING SYSTEM LINE (21) - TRANSMISSION

1

86579690

ELBOW,90 Degree, 13/16"-18 ORFS x M16 x 1.5 ORB

ASSY, Incl 2, (Qty 1), 3 (Qty 1), 4 (Qty 1)

2шт.

2

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

3

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

4

NSS

NOT SOLD SEPARAT

Elbow, Incl in 1

2шт.

5

84140206

CHECK VALVE

40Mpa Max Working Pressure

1шт.

6

47441369

TUBE

Rear Brakes

1шт.

7

86533127

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 13/16" - 16 ORFS

ASSY, Incl 8, 9

1шт.

8

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

9

NSS

NOT SOLD SEPARAT

Tee, Incl in 7

1шт.

10

84422019

TUBE

Lube Rear Brake, RH

1шт.

11

84473881

TUBE

Lube Rear Brake, LH

1шт.
