Запчасти Case IH MAXXUM 135 (90.160.BL[03]) - VAR - 743686, 743733, 758359 - CAB INTERIOR TRIM, ELECTRONIC CONTROLS, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

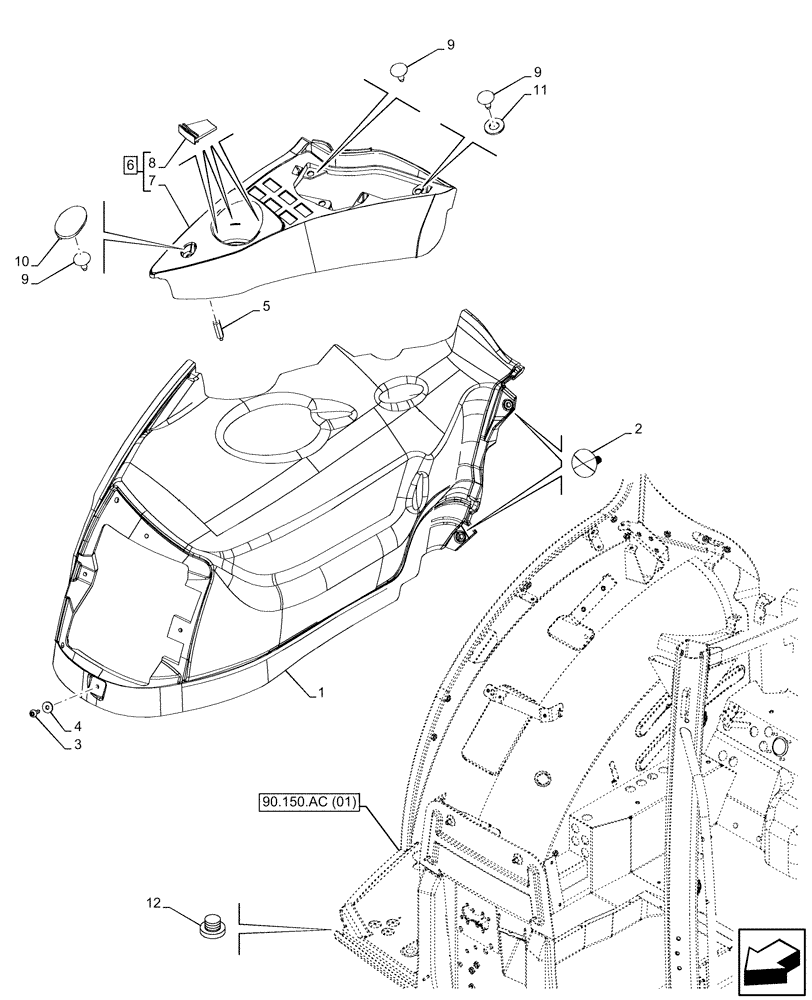

Схема запчастей Case IH MAXXUM 135 - (90.160.BL[03]) - VAR - 743686, 743733, 758359 - CAB INTERIOR TRIM, ELECTRONIC CONTROLS, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.ac (01)
4
11
6
9
1
2
8
7
12
9
10
9
3
5

Артикул

Название

Примечание

Количество

1

84242720

TRIM PANEL

RH

1шт.

2

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

2шт.

3

15647001

SELF-TAP SCREW,Pozidriv Pan Hd, M12 x 19mm

4шт.

4

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

5

87493058

SPACER,Hex, M6 x 1 x 47mm L

RH

1шт.

6

84206691

COVER

ASSY, RH, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Cover, RH, Incl in 6

1шт.

8

304061A1

BUMPER,Rubber

3шт.

9

10558728

SCREW,Flat Hd W/Collar, M6 x 22mm, Cl 8.8

4шт.

10

87752306

BLANK-OFF PLUG,Grey

1шт.

11

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

12

81862738

PLUG,M38 x 28 x 5mm

1шт.

Выбрано товаров: 12
