Запчасти Case IH MAXXUM 135 (90.160.AX[02]) - VAR - 390825 - CAB HEADLINER, HIGH PROFILE ROOF (90) - PLATFORM, CAB, BODYWORK AND DECALS

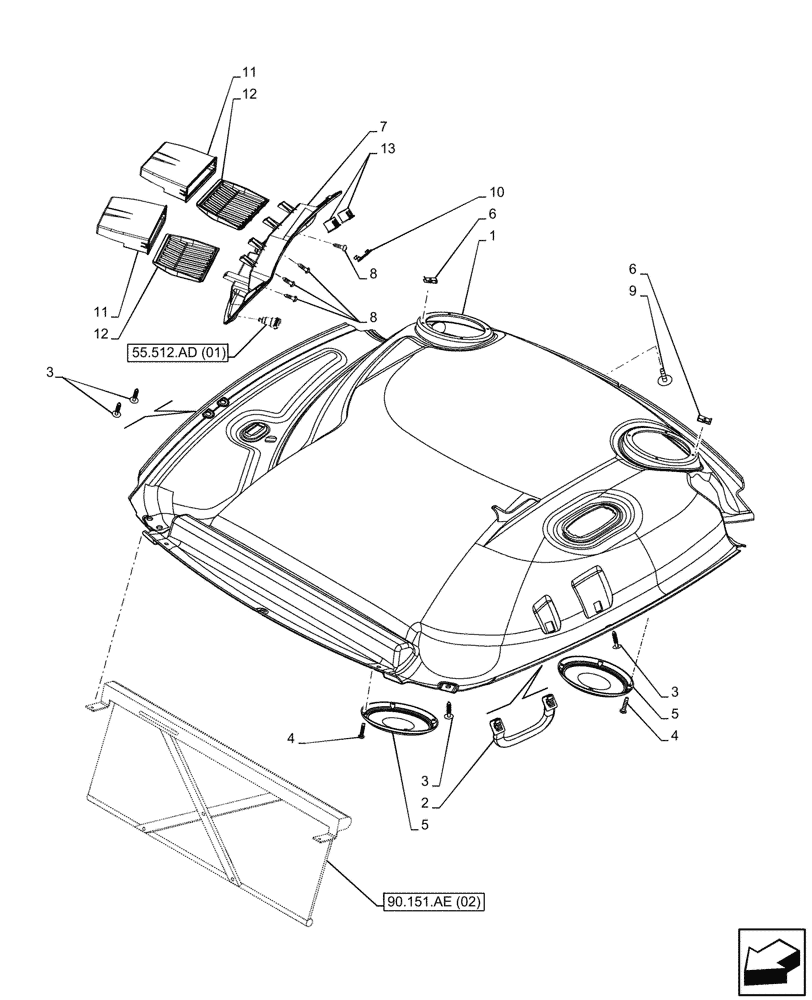

Схема запчастей Case IH MAXXUM 135 - (90.160.AX[02]) - VAR - 390825 - CAB HEADLINER, HIGH PROFILE ROOF (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.151.ae (02)
9
11
12
6
8
2
8
4
3
1
3
5
5
6
3
13
10
11
7
12
4
55.512.ad (01)

Артикул

Название

Примечание

Количество

1

47365206

HEADLINER

Wheat

1шт.

2

84227380

HANDLE

Wheat

1шт.

3

82033699

PLASTIC PLUG,6.8mm D x 35mm L, Grey

Gray

5шт.

4

15916007

SELF-TAP SCREW,Pozidriv Flat Hd Csk, M3.50 x 1.3 x 19mm

8шт.

5

82022875

GRILLE,185mm OD

2шт.

6

47557619

CLIP,M3.50 x 19mm

2 x 16 x 11

8шт.

7

47778962

CONSOLE

Wheat, Less Electric Mirror

1шт.

8

15903904

SCREW,Pan Hd, M4.8 x 1.6 x 19mm

ST4.8 x 19 P/HD CR-Z DAC

4шт.

9

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

Wheat

1шт.

10

47363750

PLUG,23.1mm OD

Wheat

1шт.

11

47364183

BOX

Wheat

2шт.

12

47470835

INSERT

2шт.

13

82022763

PLUG

2шт.

Выбрано товаров: 13
