(90.156.AE[01]) - VAR - 391610, 758479, 758480, 758481 - CAB, WINDOW, REAR, GAS STRUT

Запчасти Case IH MAXXUM 135 (90.156.AE[01]) - VAR - 391610, 758479, 758480, 758481 - CAB, WINDOW, REAR, GAS STRUT (90) - PLATFORM, CAB, BODYWORK AND DECALS

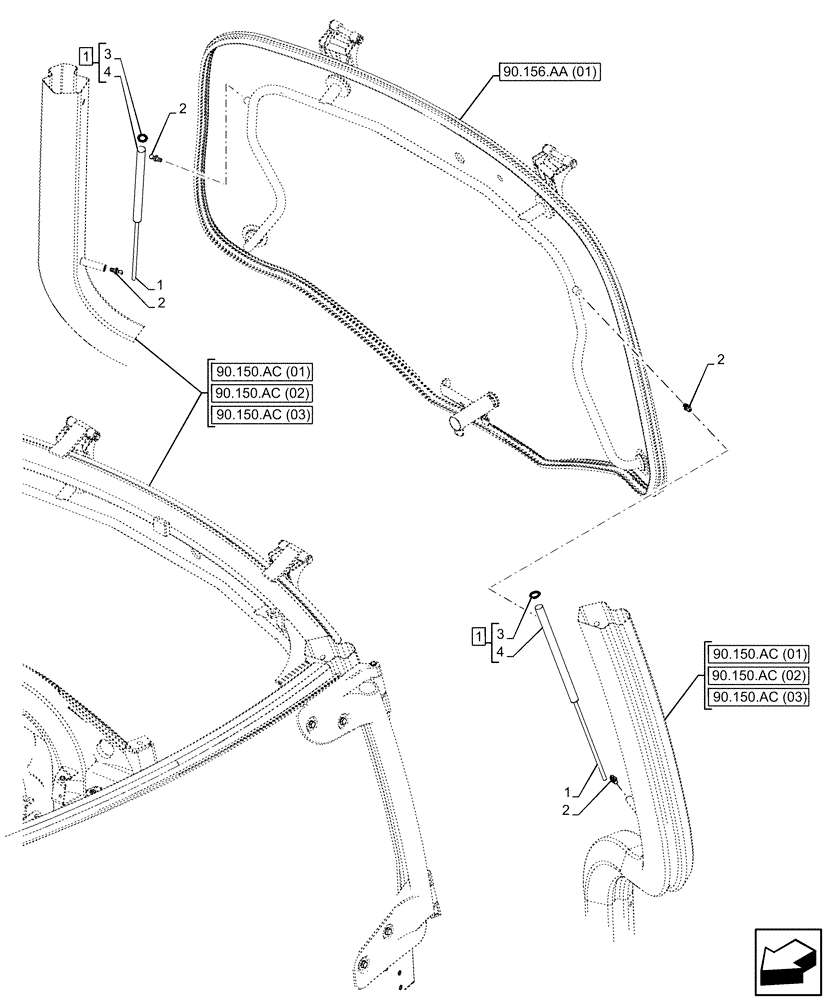

Схема запчастей Case IH MAXXUM 135 - (90.156.AE[01]) - VAR - 391610, 758479, 758480, 758481 - CAB, WINDOW, REAR, GAS STRUT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.ac (03)
2
3
2
1
1
4
1
2
1
2
3
4
90.150.ac (02)
90.156.aa (01)
90.150.ac (02)
90.150.ac (01)
90.150.ac (01)
90.150.ac (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82022486

GAS STRUT,486mm Extended, 286mm Compressed

ASSY, Incl 3 (Qty 1), 4 (Qty 1)

2шт.

2

83952214

BALL STUD,M8 x 29.5mm OAL

4шт.

3

82019395

SEAL

2шт.

4

NSS

NOT SOLD SEPARAT

Gas Strut, Incl in 1

2шт.

Выбрано товаров: 4
