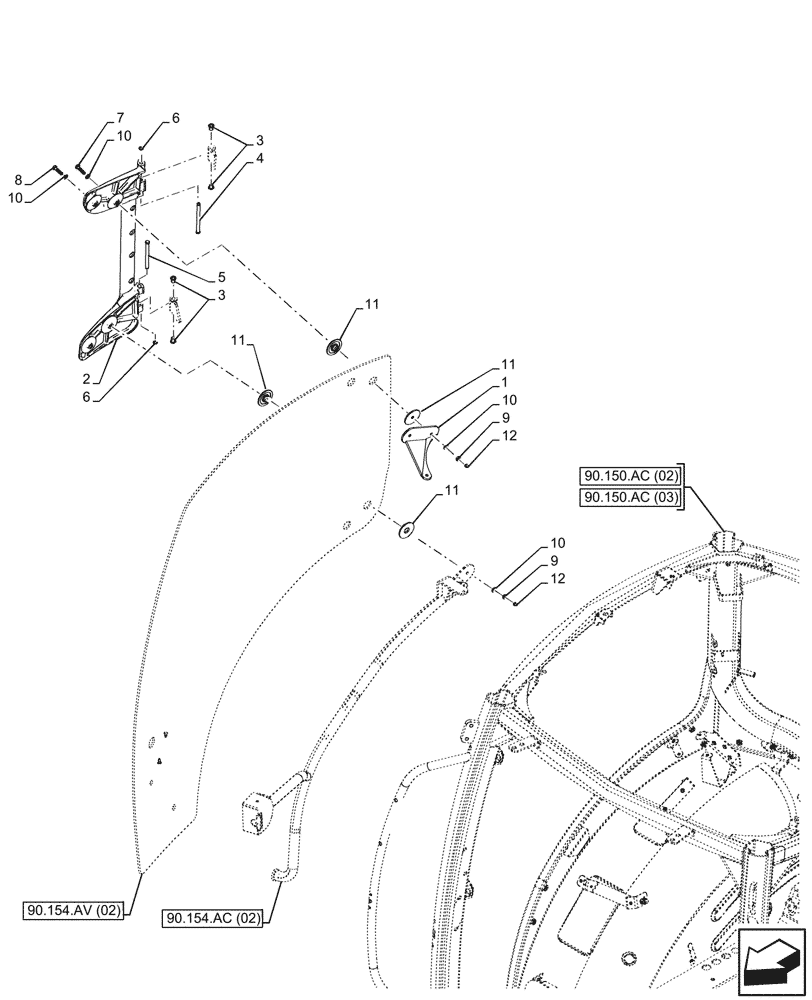

Запчасти Case IH MAXXUM 135 (90.154.AE[02]) - VAR - 391610, 758479, 758481 - CAB DOOR, HINGE, RIGHT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87741221

BRACKET, SUPPORTING

1шт.

2

87301647

HINGE

1шт.

3

82027697

BUSHING,9.5mm ID x 18mm OD x 17mm L

4шт.

4

82029159

PIN,9.8mm OD x 129mm L

1шт.

5

82029160

PIN,9.8MM OD X 117.6MM L

1шт.

6

86639142

SNAP RING,M8

2шт.

7

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

8

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

9

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

10

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

8шт.

11

87528178

SEALING WASHER,20mm ID x 60mm OD x 5.5mm Thk

8шт.

12

87516431

CUP,for M8 Nut

4шт.
