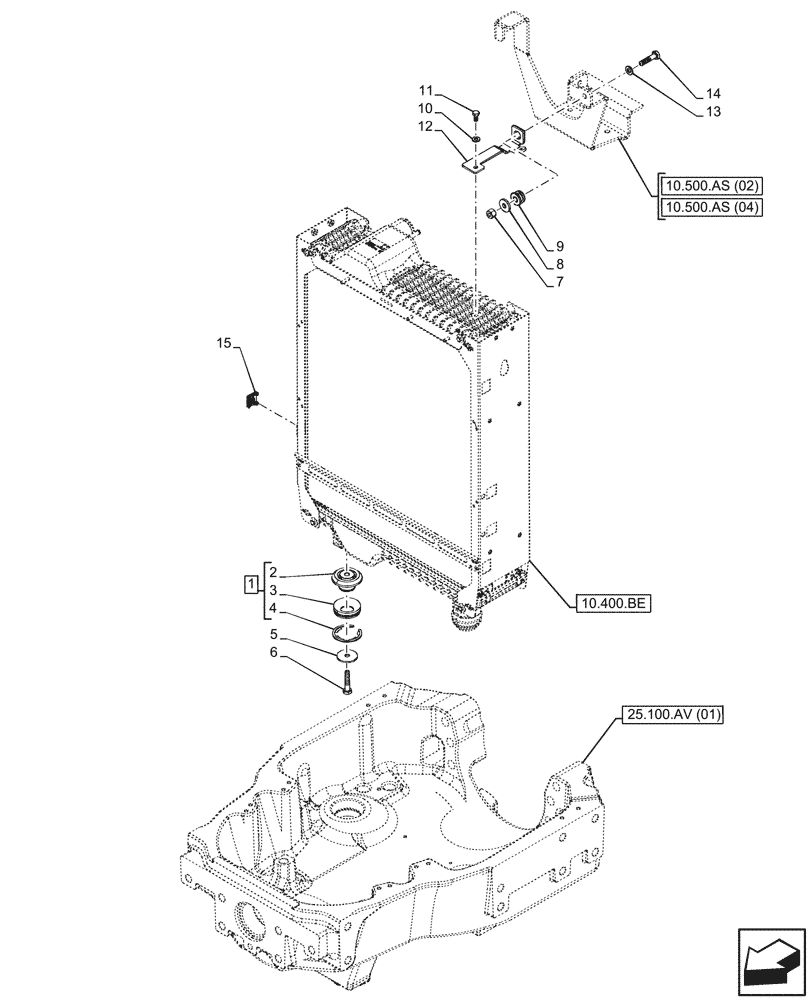

Запчасти Case IH MAXXUM 135 (10.400.BF[01]) - VAR - 390643, 758482 - RADIATOR, SUPPORT (10) - ENGINE

1

82023389

ISOLATOR,67mm OD x 35.5mm L

ASSY, Incl 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Pad, Incl in 1

1шт.

4

82033528

SNAP RING,55mm ID

1шт.

5

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

2шт.

6

11343821

BOLT,Hex, M10 x 1.25 x 50, 8.8

2шт.

7

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

8

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

1шт.

9

82009429

ISOLATOR

1шт.

10

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

11

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

12

47738410

BRACKET

1шт.

13

85700654

WASHER,10.5mm ID x 20mm OD x 2.5mm Thk

1шт.

14

11098621

BOLT,Hex, M10 x 45mm, Cl 8.8, Full Thd

1шт.

15

82004582

CLIP,Square, 25mm

1шт.
