Запчасти Case IH MAXXUM 135 (90.151.AC[06]) - VAR - 758569 - PASSENGER SEAT, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

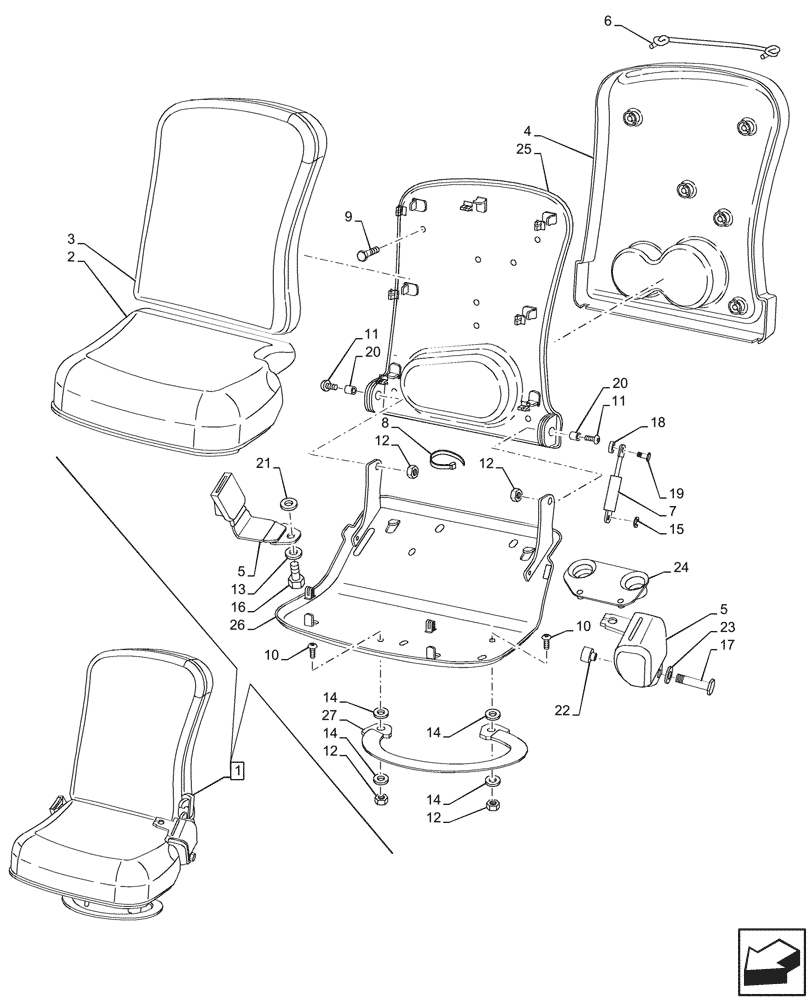

Схема запчастей Case IH MAXXUM 135 - (90.151.AC[06]) - VAR - 758569 - PASSENGER SEAT, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
24
10
22
12
20
11
17
12
4
27
14
14
14
9
12
6
25
5
13
26
7
18
10
20
23
14
19
16
2
3
11
12
1
21
15
5
8

Артикул

Название

Примечание

Количество

1

47773595

INSTRUCTIONAL SEAT

ASSY, W/ Belt, Leather Pasubio Grain Verona Anthracite, Incl 2 - 27

1шт.

2

47849601

SEAT CUSHION,Leather

1шт.

3

47849602

BACKREST

1шт.

4

47849613

COVER

1шт.

5

47849618

SEAT BELT

1шт.

6

47849619

STRAP

4шт.

7

47849623

GAS STRUT

1шт.

8

NSS

NOT SOLD SEPARAT

Plastic Cable Ties 30cm, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Screw K50x16, Incl in 1

5шт.

10

NSS

NOT SOLD SEPARAT

Screw M8x16, Incl in 1

2шт.

11

NSS

NOT SOLD SEPARAT

Screw M8x20, Incl in 1

2шт.

12

NSS

NOT SOLD SEPARAT

Nut M8, Incl in 1

4шт.

13

NSS

NOT SOLD SEPARAT

Washer D13, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Washer D8x15, Incl in 1

4шт.

15

NSS

NOT SOLD SEPARAT

Retaining Washer D4, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Screw M12x25, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Hexagon Head Screw M12x35, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Spacer, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Screw M5, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

Spacer, Incl in 1

2шт.

21

NSS

NOT SOLD SEPARAT

Spacer, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Spacer, Incl in 1

1шт.

23

NSS

NOT SOLD SEPARAT

Spacer, Incl in 1

1шт.

24

NSS

NOT SOLD SEPARAT

Seat Fixing Bracket, Incl in 1

1шт.

25

NSS

NOT SOLD SEPARAT

Seat Back Bodywork Passenger, Incl in 1

1шт.

26

NSS

NOT SOLD SEPARAT

Cushion Bodywork Passenger Seat, Incl in 1

1шт.

27

NSS

NOT SOLD SEPARAT

Grab Handle, Incl in 1

1шт.

Выбрано товаров: 27
