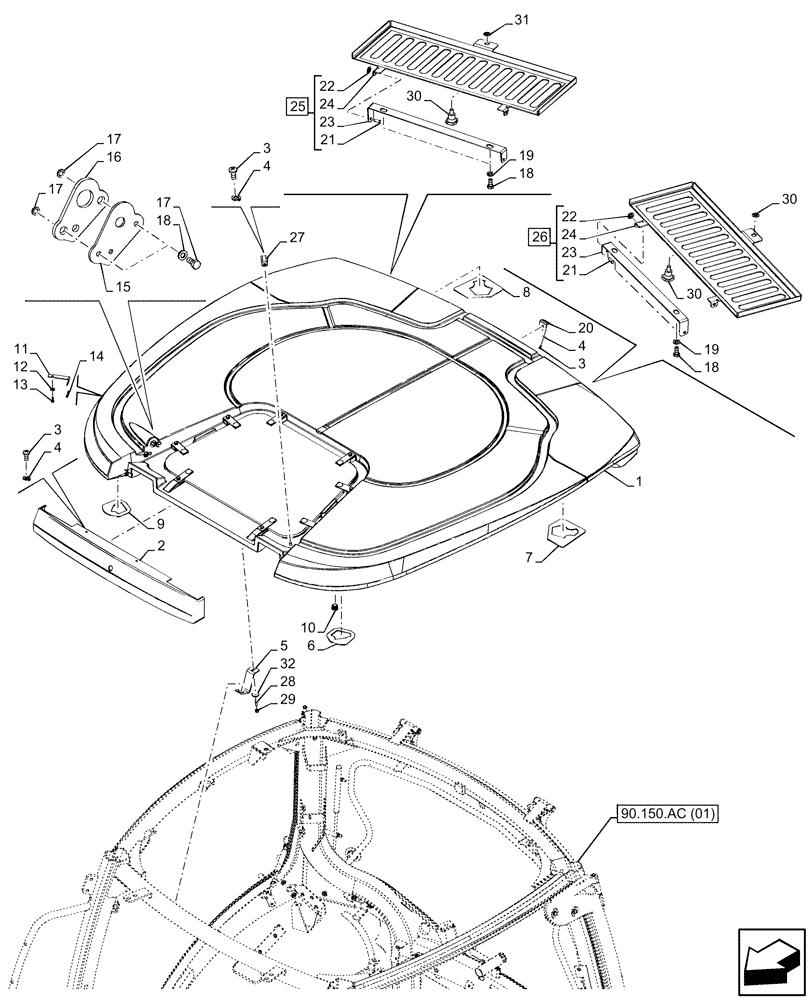

Запчасти Case IH MAXXUM 135 (90.150.BG[11]) - VAR - 744985 - CAB ROOF, LOW PROFILE ROOF, EU (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47738491

ROOF

1шт.

2

87323767

COVER

1шт.

3

83949904

SCREW,Pan, M4 x 10mm, Gr 4.8

8шт.

4

83901553

LOCK WASHER,M5

8шт.

5

47453714

BRACKET

1шт.

6

82025910

GASKET,10 Thk, Black

2шт.

7

82038034

INSULATION

2шт.

8

82038033

GASKET,10mm Thk

2шт.

9

82023417

GASKET,10mm Thk, Black

2шт.

10

87600545

BUTTON PLUG,M17 x 11.50mm

8шт.

11

87327068

BRACKET

1шт.

12

12638107

SPACER,5.2mm ID x 14mm OD x 1mm Thk

1шт.

13

14304627

HEX SOC SCREW,M5 x 14mm, Cl 8.8, Full Thd

1шт.

14

81872135

NUT,Retaining, M4.20

1шт.

15

47435584

PLATE

1шт.

16

47435589

GASKET,5mm Thk

1шт.

17

47407927

SPACER,6.2mm ID x 10mm OD x 1.5mm L

2шт.

18

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

4шт.

19

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

7шт.

20

87327093

BRACKET

1шт.

21

10033111

CLEVIS PIN,M4 x 12

4шт.

22

14227876

CLIP,M4, Push

4шт.

23

NSS

NOT SOLD SEPARAT

Filter Cover Bracket, Incl in 26

2шт.

24

87326775

FILTER COVER

2шт.

25

87341182

FILTER COVER

ASSY, Right, Incl 21 (Qty 2), 22 (Qty 2), 23 (Qty 1), 24 (Qty 1)

1шт.

26

87341180

FILTER COVER

ASSY, Left, Incl 21 (Qty 2), 22 (Qty 2), 23 (Qty 1), 24 (Qty 1)

1шт.

27

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

28

11500321

BOLT,M6 x 18, 8.8, ZND

1шт.

29

12574211

NUT,M6 x 1, Cl 8

3шт.

30

87337041

KNOB,M6 x 10mm

2шт.

31

87359165

RETAINER CUP,M6

2шт.

32

12640601

WASHER,6.15mm ID x 25mm OD x 2mm Thk

1шт.
