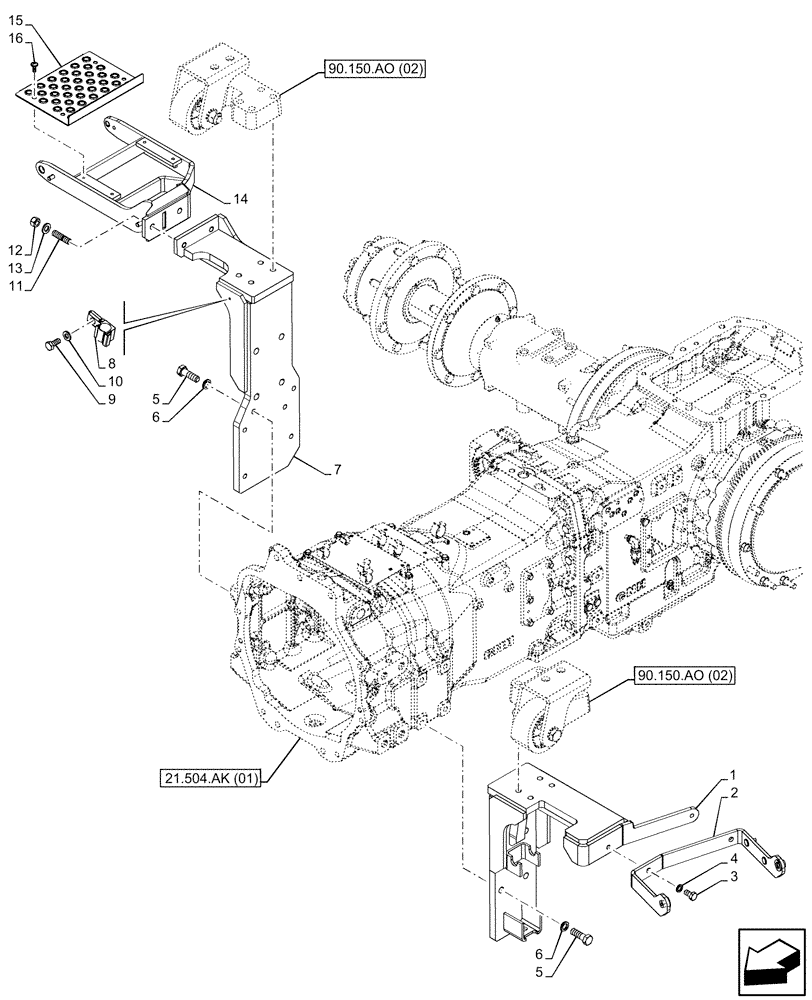

Запчасти Case IH MAXXUM 135 (90.150.AE[02]) - VAR - 758479, 758480, 758481 - CAB, FRONT, MOUNT, SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47738905

SUPPORT

1шт.

2

47756578

BRACKET

1шт.

3

11112221

SCREW,Hex, M12 x 25mm, Cl 8.8, Full Thd

2шт.

4

14499604

WASHER,13mm ID x 20mm OD x 2.5mm Thk

2шт.

5

15840524

SCREW,Hex, M16 x 1.5 x 50mm, Cl 8.8, Full Thd

8шт.

6

47630556

WASHER,17.0mm ID x 25.4mm OD x 3.4mm Thk

8шт.

7

47627702

SUPPORT

1шт.

8

47772995

CLIP

1шт.

9

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

10

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

11

47774507

STUD,M14 x 1.5 x 35mm L, Cl 8.8

2шт.

12

86639148

NUT,M14 x 1.5, Cl 8

2шт.

13

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

2шт.

14

47773558

SUPPORT

1шт.

15

47471099

STEP

1шт.

16

2929702

HEX SOC SCREW,M8 x 20mm L

4шт.
