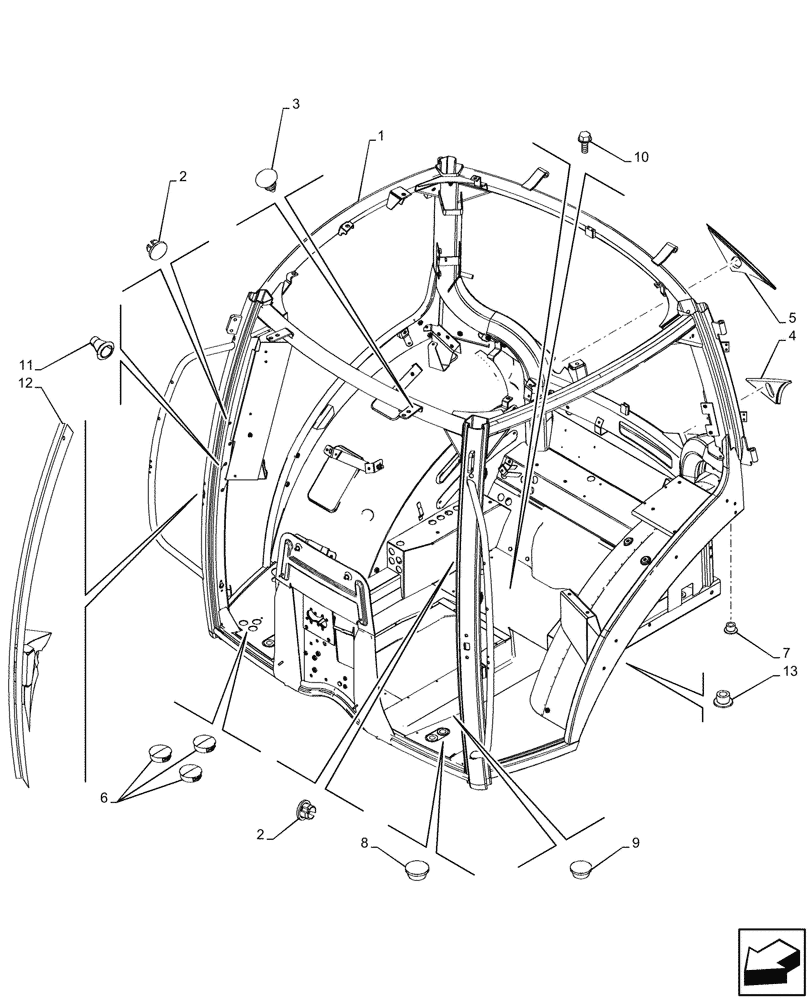

Запчасти Case IH MAXXUM 135 (90.150.AC[01]) - VAR - 391610 - CAB FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47723840

CAB

1шт.

2

81865132

PLUG,11.20mm

2шт.

3

87716701

PLUG,Blanking, Snap, 6.40mm Dia

1шт.

4

82036800

PLUG

Left

1шт.

5

82036801

PLUG

Right

1шт.

6

82031549

BLANK-OFF PLUG,35mm OD, Black

3шт.

7

82003283

PLUG,10.5mm OD

4шт.

8

82032838

PLUG,20.7mm ID x 25mm OD x 10.5mm Thk

2шт.

9

84234592

PLUG,M20.7 x 10.5mm

2шт.

10

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

11

87341141

PLUG

3шт.

12

84195950

SUPPORT

1шт.

13

82036858

COVER

4шт.
