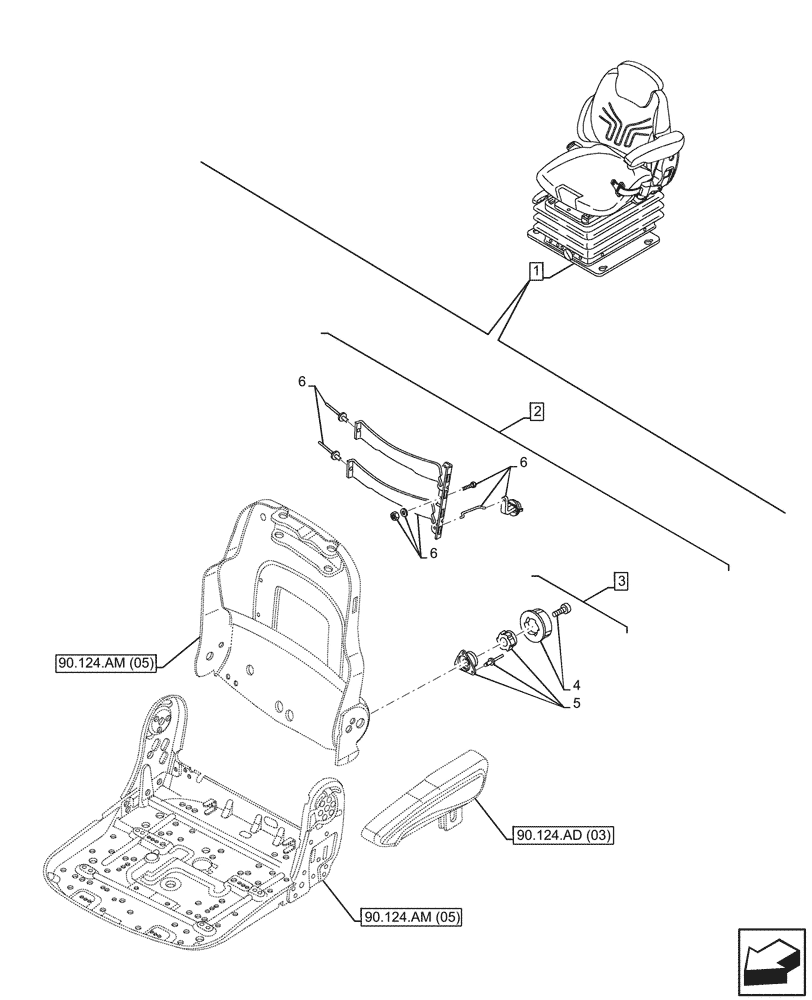

Запчасти Case IH MAXXUM 135 (90.124.AQ[03]) - VAR - 758671 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ HEATED CUSHIONS, W/ MECHANICAL REMOTES, LUMBAR, ADJUSTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84171102

SEAT

ASSY, Deluxe Seat with Low Frequency Suspension with Heated Cushions & Belt Mech Remotes, Incl 2 - 6

1шт.

See also Driver Seat Components in Figure 55.512.CQ (03), 90.124.AD (03), 90.124.AH (03), 90.124.AK (03), 90.124.AL (03), 90.124.AM (05), 90.124.AM (06), 90.124.AN (03), 90.151.AD (03)

1шт.

2

345767A1

SUPPORT

ASSY, Incl 3 - 6

1шт.

3

84191199

ACTUATOR

ASSY, Incl 4, 5

1шт.

4

82034964

HANDLE

1шт.

5

NSS

NOT SOLD SEPARAT

Actuator Lumbar Support, Incl in 3

1шт.

6

NSS

NOT SOLD SEPARAT

Lumbar Support, Incl in 2

1шт.
