Запчасти Case IH MAXXUM 135 (90.124.AM[08]) - VAR - 758362 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ MECHANICAL REMOTES, BASE PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS

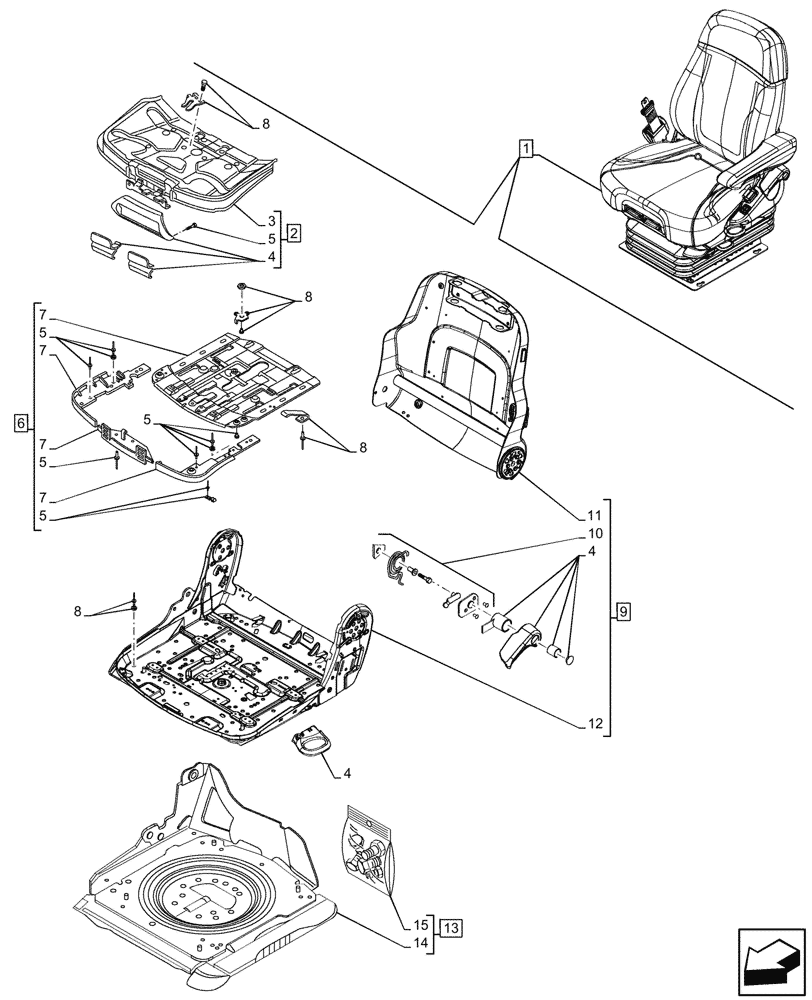

Схема запчастей Case IH MAXXUM 135 - (90.124.AM[08]) - VAR - 758362 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ MECHANICAL REMOTES, BASE PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
5
1
4
14
12
5
6
5
8
8
4
15
5
9
13
7
10
3
8
7
5
2
11
8
7
7

Артикул

Название

Примечание

Количество

1

47725238

DRIVER SEAT

ASSY, Fabric Verona Grey, De Luxe Comfort Pack MHR, Incl 2 - 15

1шт.

See also Driver Seat Components in Figure 55.512.CQ (05), 55.512.CS (12), 90.124.AH (05), 90.124.AN (05), 90.124.AO (02), 90.151.AD (05)

1шт.

2

47897080

SERVICE KIT

ASSY, Support, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Support, Incl in 2

1шт.

4

47891302

ACTUATOR

1шт.

5

84191202

SET OF PARTS

1шт.

6

84302186

SEAT

ASSY, Incl 5, 7

1шт.

7

NSS

NOT SOLD SEPARAT

Seat, Incl in 6

1шт.

8

47891407

SERVICE KIT

Support

1шт.

9

47891522

SERVICE KIT

ASSY, Support, Incl 4, 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

Backrest Adjustment, Incl in 9

1шт.

11

NSS

NOT SOLD SEPARAT

Backrest, Incl in 9

1шт.

12

NSS

NOT SOLD SEPARAT

Seat, Incl in 9

1шт.

13

47891496

SERVICE KIT

ASSY, Support, Incl 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Support, Incl in 13

1шт.

15

47897033

SERVICE KIT

Support

1шт.

Выбрано товаров: 16
