Запчасти Case IH MAXXUM 135 (90.124.AM[05]) - VAR - 758671 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ HEATED CUSHIONS, W/ MECHANICAL REMOTES, CUSHION, BACKREST, FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

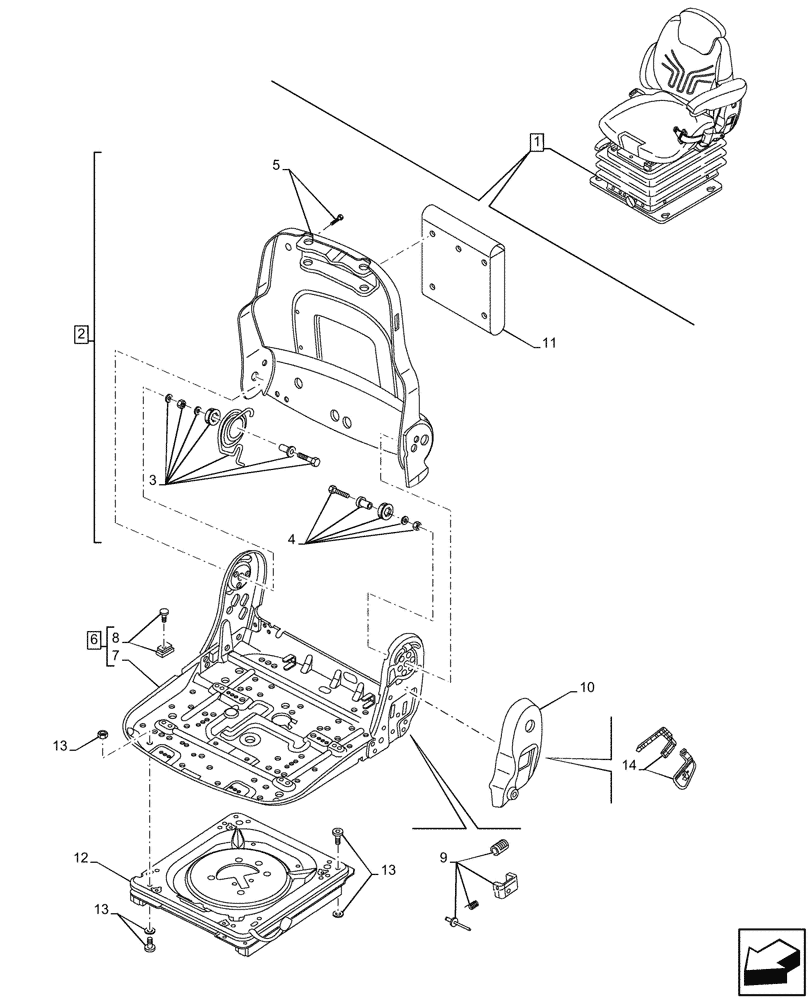

Схема запчастей Case IH MAXXUM 135 - (90.124.AM[05]) - VAR - 758671 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ HEATED CUSHIONS, W/ MECHANICAL REMOTES, CUSHION, BACKREST, FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
8
2
5
10
11
1
3
9
6
7
14
4
13
13
13

Артикул

Название

Примечание

Количество

1

84171102

SEAT

ASSY, Deluxe Seat with Low Frequency Suspension with Heated Cushions & Belt Mech Remotes, Incl 2 - 14

1шт.

See also Driver Seat Components in Figure 55.512.CQ (03), 90.124.AD (03), 90.124.AH (03), 90.124.AK (03), 90.124.AL (03), 90.124.AM (06), 90.124.AN (03), 90.124.AQ (03), 90.151.AD (03)

1шт.

2

84191121

BACKREST

ASSY, Incl 3 - 5

1шт.

3

84191131

SET OF PARTS

1шт.

4

84191196

SET OF PARTS

1шт.

5

NSS

NOT SOLD SEPARAT

Backrest, Incl in 2

1шт.

6

84191188

REPAIR KIT

ASSY, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Support, Incl in 6

1шт.

8

84191178

SET OF PARTS

1шт.

9

82034946

SERVICE KIT

Support Cushion

1шт.

10

87331931

COVER

LH

1шт.

11

47124555

BRIEF CASE

1шт.

12

82039448

PLATE

1шт.

13

84191194

MOUNTING PARTS

1шт.

Include also Small Parts in Figure 90.124.AL (03), 90.151.AD (03)

1шт.

14

82034960

LEVER

ASSY, Incl 18, 19

1шт.

Выбрано товаров: 16
