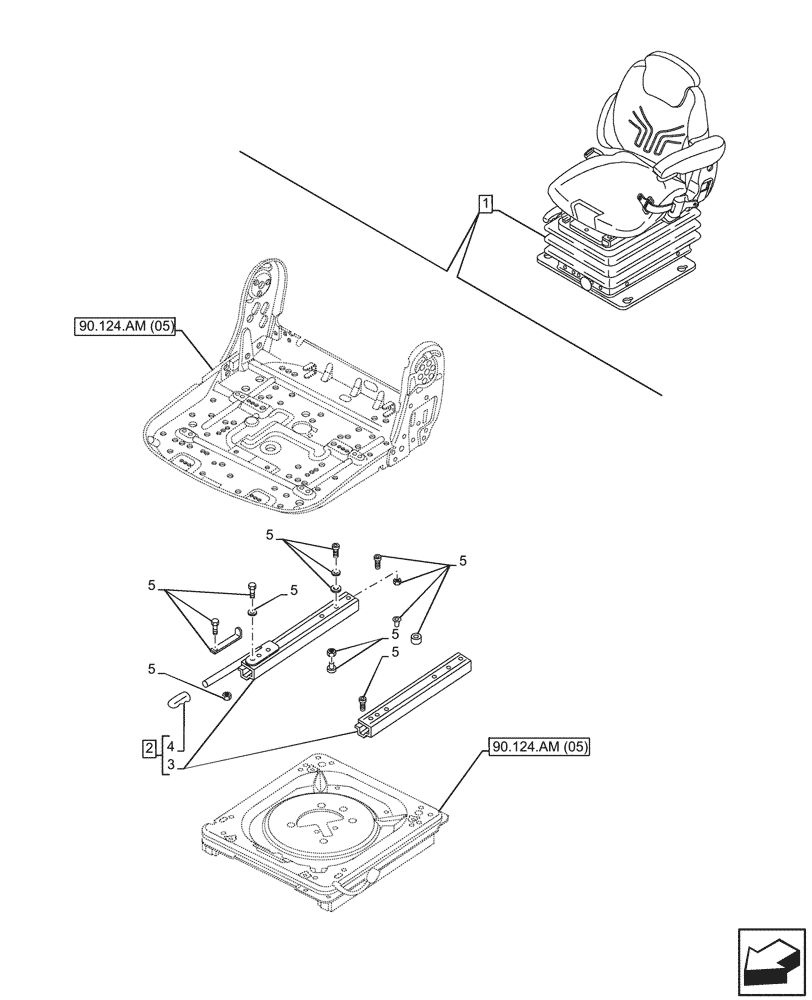

Запчасти Case IH MAXXUM 135 (90.124.AL[03]) - VAR - 758671 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ HEATED CUSHIONS, W/ MECHANICAL REMOTES, GUIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84171102

SEAT

ASSY, Deluxe Seat with Low Frequency Suspension with Heated Cushions & Belt Mech Remotes, Incl 2 - 5

1шт.

See also Driver Seat Components in Figure 55.512.CQ (03), 90.124.AD (03), 90.124.AH (03), 90.124.AK (03), 90.124.AM (05), 90.124.AM (06), 90.124.AN (03), 90.124.AQ (03), 90.151.AD (03)

1шт.

2

84191191

REPAIR KIT

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Seat Slide Guide, Incl in 2

1шт.

4

9971715

HANDLE

1шт.

5

84191194

MOUNTING PARTS

1шт.

Include also Small Parts in Figure 90.124.AM (05), 90.151.AD (03)

1шт.
