Артикул
Название
Примечание
Количество
1
84171102
SEAT

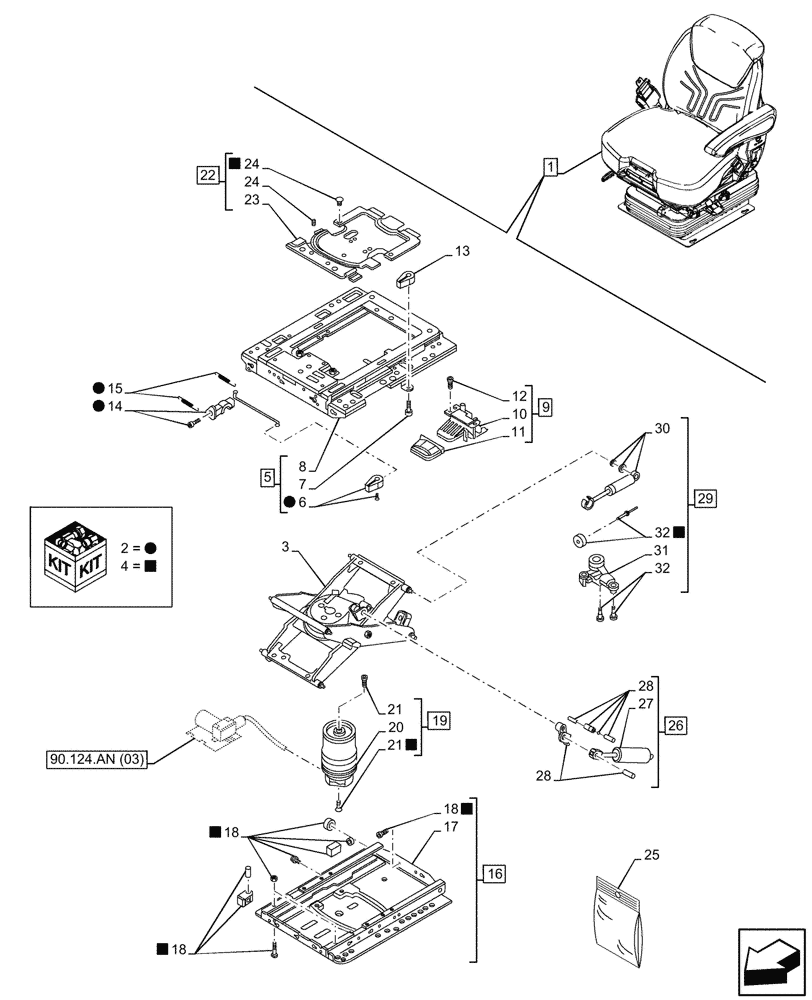

ASSY, Deluxe Seat with Low Frequency Suspension with Heated Cushions & Belt Mech Remotes, Incl 2 - 32
1шт.
See also Driver Seat Components in Figure 55.512.CQ (03), 90.124.AD (03), 90.124.AH (03), 90.124.AL (03), 90.124.AM (05), 90.124.AM (06), 90.124.AN (03), 90.124.AQ (03), 90.151.AD (03)
1шт.
2
84190989
ADJUSTER
ASSY, Incl 6, 14, 15
1шт.
3
NSS
NOT SOLD SEPARAT
Suspension Seat, Incl in 1
1шт.
4
84190975
REPAIR KIT
ASSY, Driver Seat, Incl 18, 21, 24, 32
1шт.
Include also Small Parts in Figure 90.124.AN (03)
1шт.
5
84190966
PLATE
ASSY, Incl 6 - 8
1шт.
6
1472163
HANDLE
1шт.
7
84191010
REPAIR KIT
Plate
1шт.
8
NSS
NOT SOLD SEPARAT
Frame, Incl in 5
1шт.
10
NSS
NOT SOLD SEPARAT
Lever, Control Height, Incl in 9
1шт.
11
84191000
HANDLE
1шт.
12
84191017
REPAIR KIT
Lever
1шт.
13
82035123
HANDLE
1шт.
14
NSS
NOT SOLD SEPARAT
Valve, Incl in 2
1шт.
15
84191015
REPAIR KIT
Adjuster
1шт.
16
84190976
PLATE
ASSY, Incl 17, 18
1шт.
17
NSS
NOT SOLD SEPARAT
Suspension, Lower, Incl in 16
1шт.
18
84191014
REPAIR KIT
Plate
1шт.
19
84190972
SHOCK ABSORBER
ASSY, Incl 20, 21
1шт.
20
NSS
NOT SOLD SEPARAT
Air Spring, Incl in 19
1шт.
21
84191012
REPAIR KIT
Seat Shock Absorber
1шт.
22
84190947
COVER
ASSY, Incl 23, 24
1шт.
23
NSS
NOT SOLD SEPARAT
Cover, Incl in 22
1шт.
24
84191006
REPAIR KIT
Cover
1шт.
25
84191020
REPAIR KIT
Driver Seat
1шт.
26
84191071
KIT
ASSY, Driver Seat, Incl 27, 28
1шт.
27
NSS
NOT SOLD SEPARAT
Seat Shock Absorber, Incl in 26
1шт.
28
84190998
SERVICE KIT
Driver Seat
1шт.
29
84190983
SHOCK ABSORBER
ASSY, Incl 29 - 32
1шт.
30
84190985
SHOCK ABSORBER
1шт.
31
NSS
NOT SOLD SEPARAT
Seat Shock Absorber, Incl in 29
1шт.
32
84191002
REPAIR KIT
Seat Shock Absorber
1шт.
Выбрано товаров: 34
