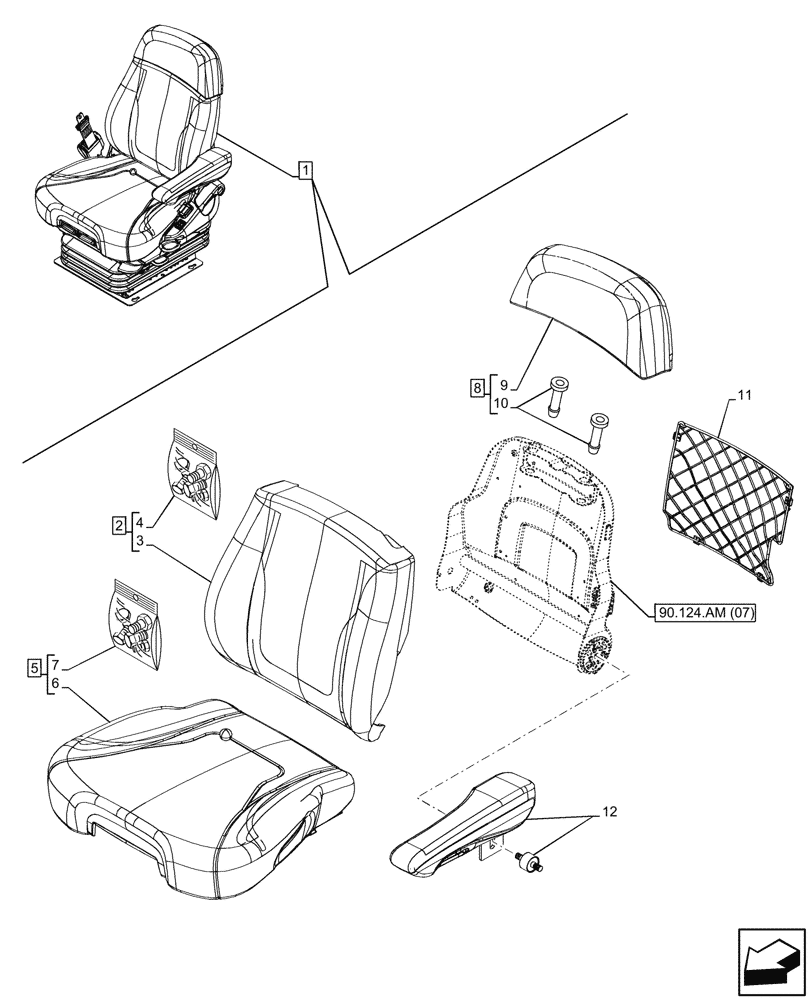

Запчасти Case IH MAXXUM 135 (90.124.AH[04]) - VAR - 758362 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, CUSHION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47544015

DRIVER SEAT

ASSY, Fabric Verona Grey, De Luxe Comfort Pack EHR, Incl 2 - 12

1шт.

See also Driver Seat Components in Figure 55.512.CQ (04), 55.512.CS (11), 90.124.AM (07), 90.124.AN (04), 90.124.AO (01), 90.151.AD (04)

1шт.

2

47891490

CUSHION

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Cushion, Incl in 2

1шт.

4

84191200

SET OF PARTS

1шт.

5

47891514

SEAT CUSHION,Leather Verona Grey/Ulisse Lena

ASSY, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Seat Cushion, Incl in 5

1шт.

7

47918168

REPAIR KIT

Cushion

1шт.

8

47891521

CUSHION

ASSY, Incl 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Cushion, Incl in 8

1шт.

10

47891525

SERVICE KIT

Cushion

1шт.

11

47576107

KIT

Seat Pocket Net

1шт.

12

47891482

ARMREST

1шт.
