Запчасти Case IH MAXXUM 135 (90.124.AH[03]) - VAR - 758671 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ HEATED CUSHIONS, W/ MECHANICAL REMOTES, CUSHION (90) - PLATFORM, CAB, BODYWORK AND DECALS

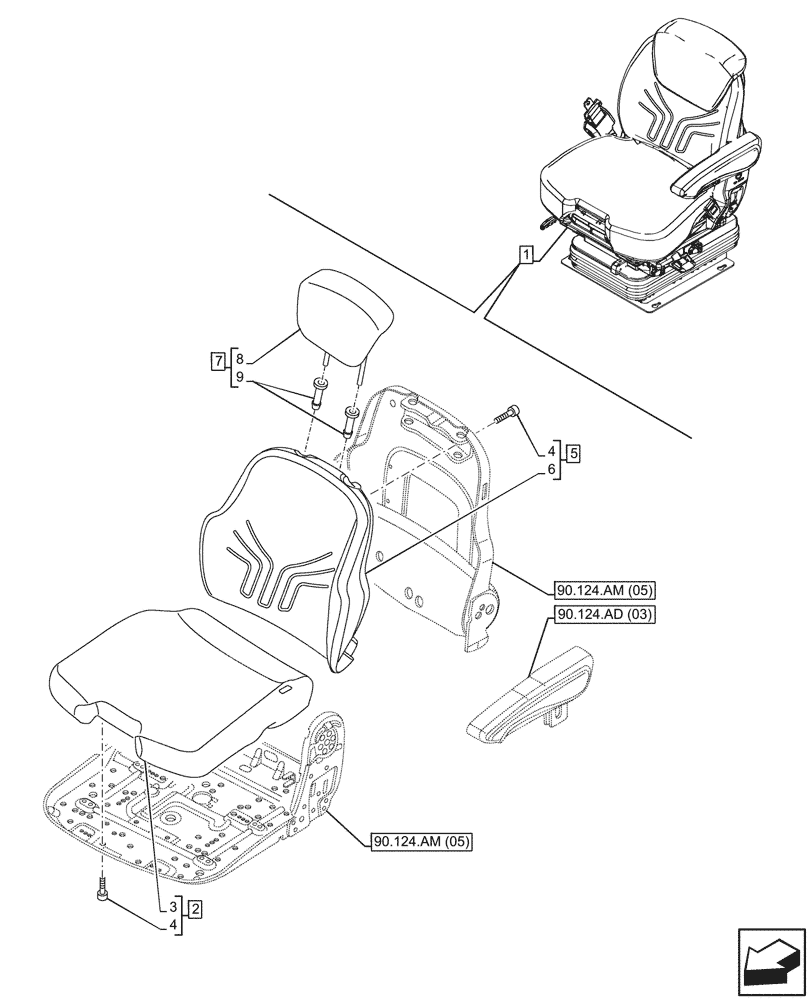

Схема запчастей Case IH MAXXUM 135 - (90.124.AH[03]) - VAR - 758671 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ HEATED CUSHIONS, W/ MECHANICAL REMOTES, CUSHION (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.ad (03)
2
6
7
4
4
5
1
3
8
9
90.124.am (05)
90.124.am (05)

Артикул

Название

Примечание

Количество

1

84171102

SEAT

ASSY, Deluxe Seat with Low Frequency Suspension with Heated Cushions & Belt Mech Remotes, Incl 2 - 9

1шт.

See also Driver Seat Components in Figure 55.512.CQ (03), 90.124.AD (03), 90.124.AK (03), 90.124.AL (03), 90.124.AM (05), 90.124.AM (06), 90.124.AN (03), 90.124.AQ (03), 90.151.AD (03)

1шт.

2

84191205

SEAT CUSHION

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Cushion, Incl in 2

1шт.

4

84191200

SET OF PARTS

1шт.

5

84191204

BACKREST

ASSY, Incl 4, 6

1шт.

6

NSS

NOT SOLD SEPARAT

Cushion, Incl in 5

1шт.

7

84191100

SEAT HEADREST

ASSY, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Headrest, Incl in 7

1шт.

9

84191112

GUIDE

1шт.

Выбрано товаров: 10
