Запчасти Case IH MAXXUM 135 (90.124.AH[02]) - VAR - 391285 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ MECHANICAL REMOTES, CUSHION (90) - PLATFORM, CAB, BODYWORK AND DECALS

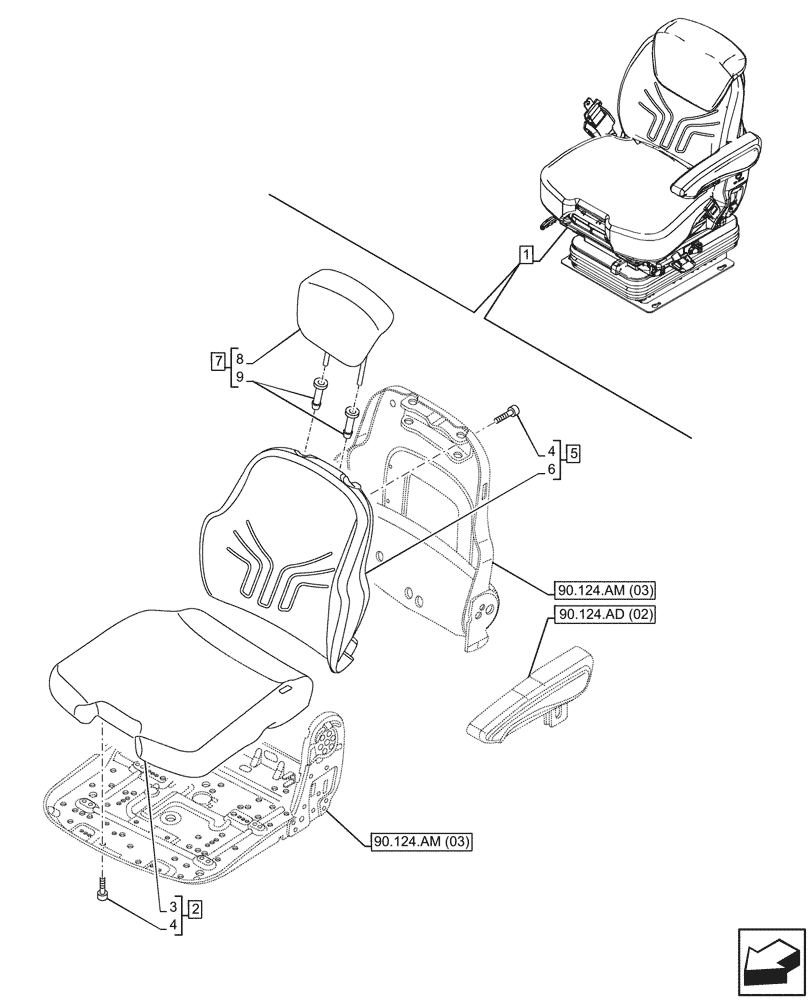

Схема запчастей Case IH MAXXUM 135 - (90.124.AH[02]) - VAR - 391285 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ MECHANICAL REMOTES, CUSHION (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.ad (02)
7
1
2
5
4
8
6
4
9
90.124.am (03)
90.124.am (03)
3

Артикул

Название

Примечание

Количество

1

84215889

DRIVER SEAT

ASSY, Deluxe Seat with Low Frequency Suspension, Belt and  Up/Down Headrest, Mech Remotes, Incl 2 - 9

1шт.

See also Driver Seat Components in Figure 55.512.CQ (02), 90.124.AD (02), 90.124.AK (02), 90.124.AL (02), 90.124.AM (03), 90.124.AM (04), 90.124.AN (02), 90.124.AQ (02), 90.151.AD (02)

1шт.

2

84191096

SEAT CUSHION,Fabric Confetti Wheat

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Cushion, Incl in 2

1шт.

4

84191200

SET OF PARTS

1шт.

5

84172430

SEAT BACK

ASSY, Incl 4, 6

1шт.

6

NSS

NOT SOLD SEPARAT

Cushion, Incl in 5

1шт.

7

84191100

SEAT HEADREST

ASSY, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Headrest, Incl in 7

1шт.

9

84191112

GUIDE

1шт.

Выбрано товаров: 10
