Запчасти Case IH MAXXUM 135 (90.124.AE[05]) - VAR - 758362 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ MECHANICAL REMOTES, MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

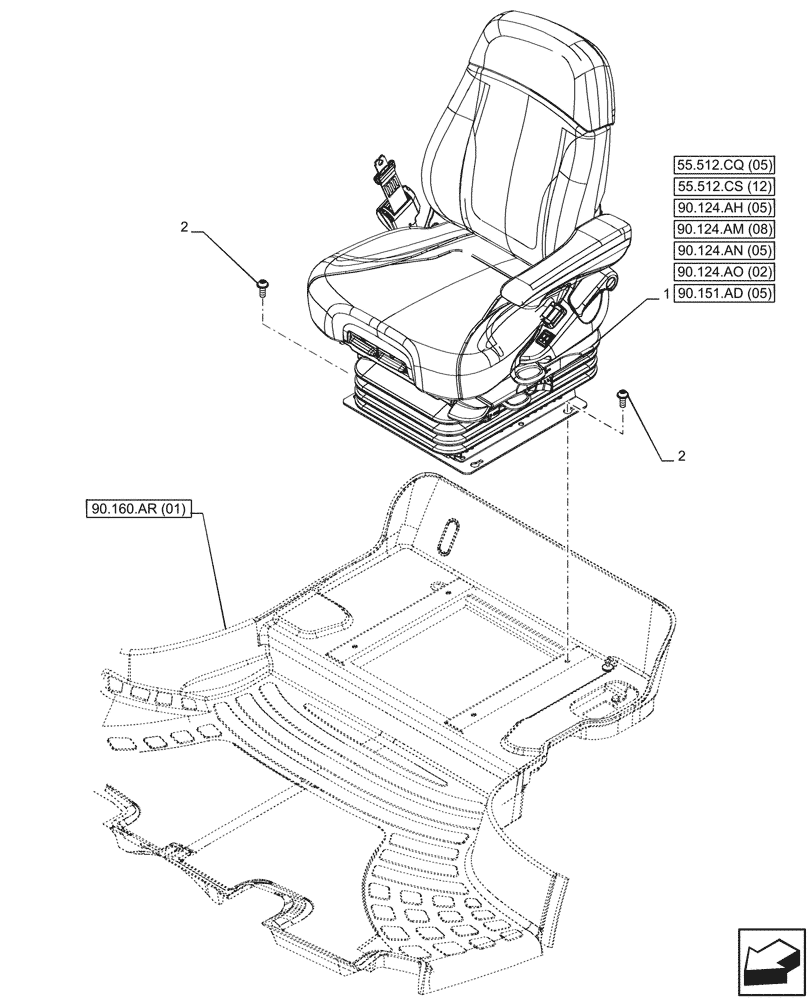

Схема запчастей Case IH MAXXUM 135 - (90.124.AE[05]) - VAR - 758362 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ MECHANICAL REMOTES, MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.160.ar (01)
2
1
2
90.124.am (08)
55.512.cq (05)
90.124.ao (02)
90.124.an (05)
90.151.ad (05)
55.512.cs (12)
90.124.ah (05)

Артикул

Название

Примечание

Количество

1

47725238

DRIVER SEAT

Fabric Verona Grey, De Luxe Comfort Pack MHR, ASSY

1шт.

2

47901143

SCREW,Torx, Pan HD, M8 x 18mm, Cl 8.8

4шт.

Выбрано товаров: 2
