Запчасти Case IH MAXXUM 135 (90.124.AD[01]) - VAR - 391285, 758671 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, ARMREST (90) - PLATFORM, CAB, BODYWORK AND DECALS

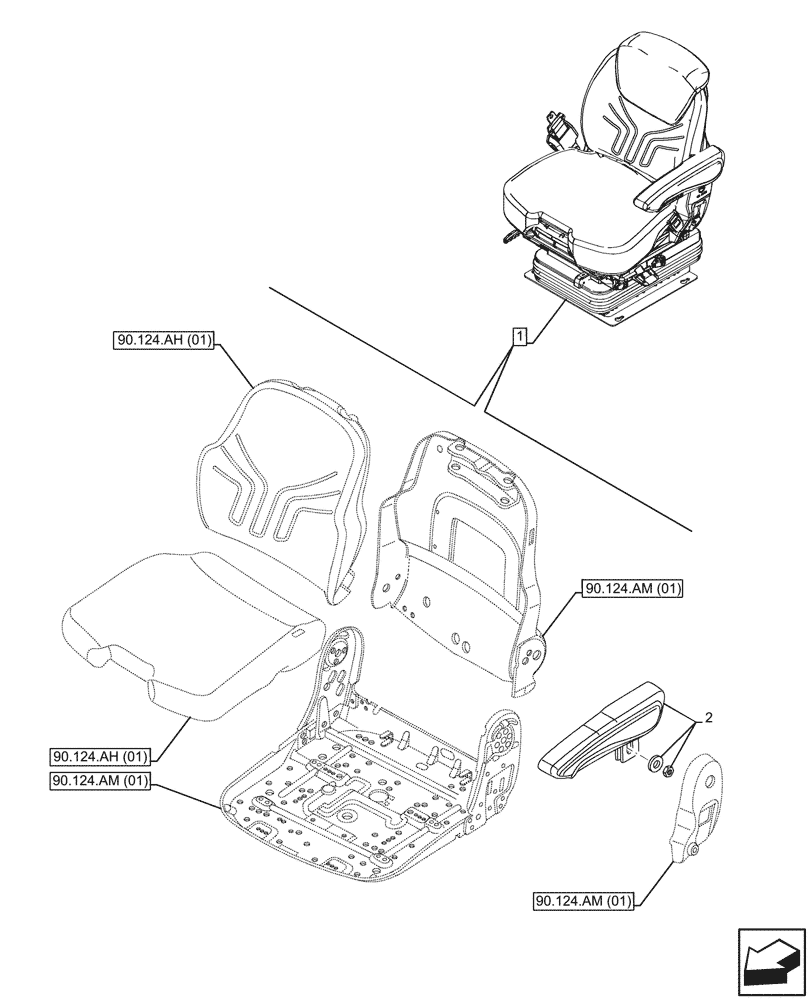

Схема запчастей Case IH MAXXUM 135 - (90.124.AD[01]) - VAR - 391285, 758671 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, ARMREST (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.ah (01)
1
2
90.124.am (01)
90.124.am (01)
90.124.am (01)
90.124.ah (01)

Артикул

Название

Примечание

Количество

1

87486990

SEAT

ASSY, Deluxe Seat with Low Frequency Suspension, Belt and Up/Down Headrest, Incl 2

1шт.

See also Driver Seat Components in Figure 55.512.CQ (01), 90.124.AH (01), 90.124.AK (01), 90.124.AL (01), 90.124.AM (01), 90.124.AM (02), 90.124.AN (01), 90.124.AQ (01), 90.151.AD (01)

1шт.

2

82034988

ARMREST

1шт.

Выбрано товаров: 3
