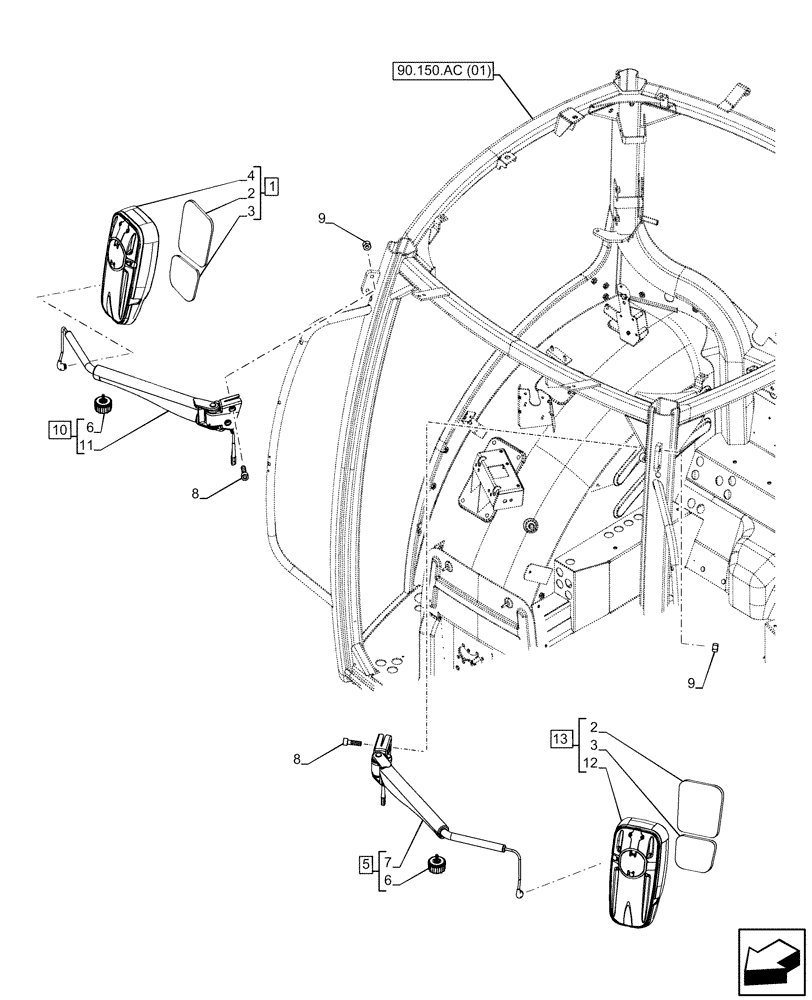

Запчасти Case IH MAXXUM 135 (90.118.BM[03]) - VAR - 758623 - REAR VIEW MIRROR, TELESCOPIC, W/ REMOTE ADJUSTMENT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84600432

RH MIRROR

ASSY, RH, Incl 2 (Qty 1), 3 (Qty 1), 12

1шт.

2

47589079

REPLACEMENT MIRROR

2шт.

3

47589080

REPLACEMENT MIRROR

2шт.

4

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

5

87346605

ARM

ASSY, LH, Incl 6 (Qty 1), 7

1шт.

6

87365131

KNOB

2шт.

7

NSS

NOT SOLD SEPARAT

Arm, Incl in 5

1шт.

8

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

9

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

10

84398576

ARM

ASSY, RH, Incl 6 (Qty 1), 11

1шт.

11

NSS

NOT SOLD SEPARAT

Arm, Incl in 10

1шт.

12

NSS

NOT SOLD SEPARAT

Cover, Incl in 13

1шт.

13

47378897

LH MIRROR

ASSY, LH, Incl 2 (Qty 1), 3 (Qty 1), 4

1шт.
