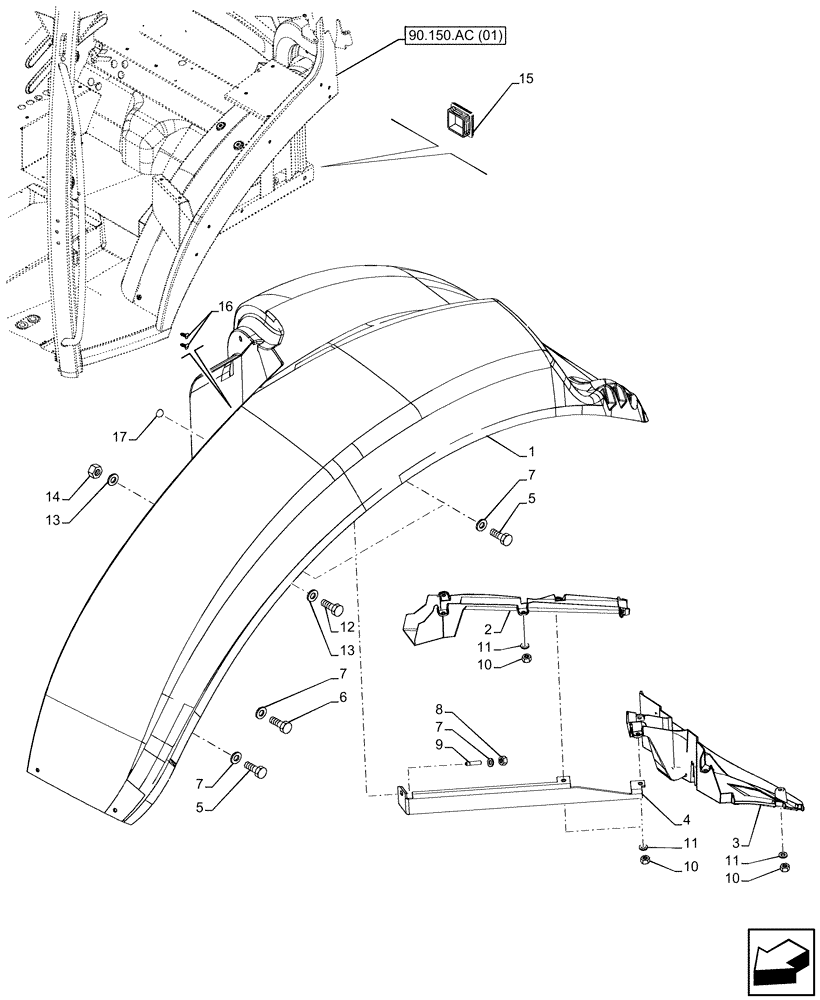

Запчасти Case IH MAXXUM 135 (90.116.AC[07]) - VAR - 743707, 743708 - WIDE REAR FENDERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87554860

REAR FENDER

LH

1шт.

1

87554861

REAR FENDER

RH

1шт.

2

84537442

COVER

LH

1шт.

2

84537443

COVER

RH

1шт.

3

87383820

COVER

LH

1шт.

3

87383821

COVER

RH

1шт.

4

87389465

BRACKET

LH

1шт.

4

87389466

BRACKET

RH

1шт.

5

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

3шт.

6

83992627

CAPTIVE WASHER SCREW,Hex, M8 x 1.25 x 25mm, Pilot

1шт.

7

83903813

SPACER,9.80-10.29mm ID x 28.4mm OD x 2.8mm Thk

6шт.

8

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.

9

13517021

STUD,M8 x 12mm x 25mm, Cl 8.8

2шт.

10

12574211

NUT,M6 x 1, Cl 8

9шт.

11

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

9шт.

12

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

13

12644301

WASHER,M10 x 35 x 3

2шт.

14

11701711

NUT,Hex, M10, Cl 8, ZND

1шт.

15

82033880

PLUG,70mm ID

1шт.

16

81870039

FASTENER,M8 x 1.5 x 22mm

2шт.

17

82034579

ELASTIC PAD

1шт.
