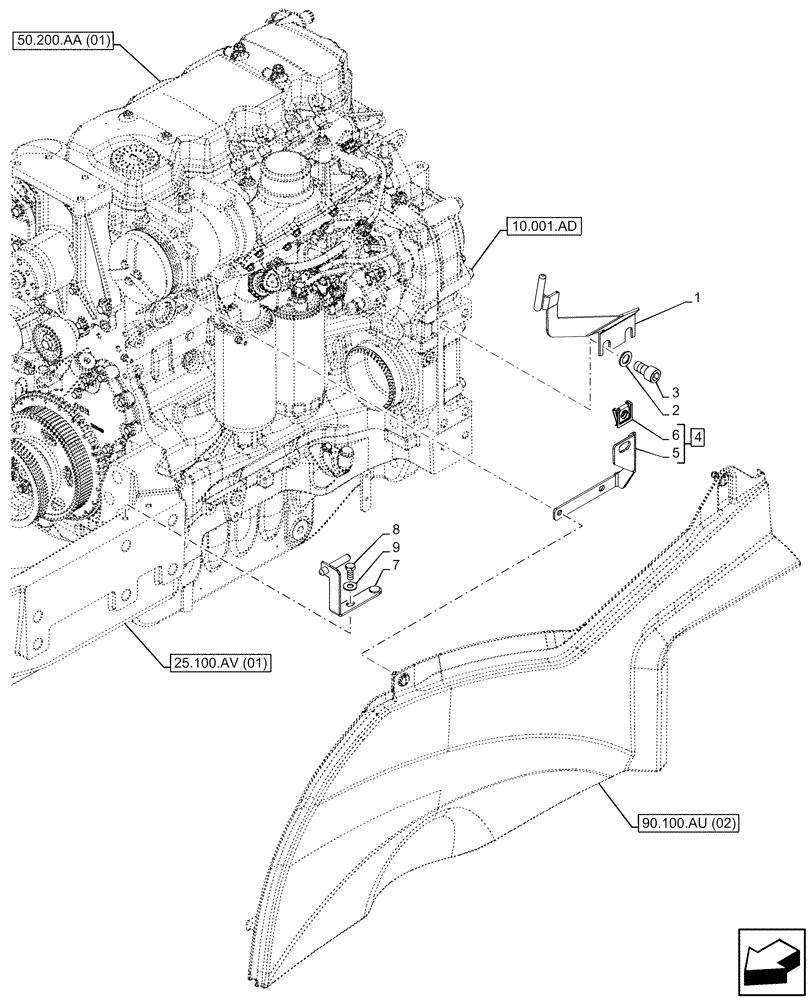

Запчасти Case IH MAXXUM 135 (90.102.AW[01]) - VAR - 392209, 743729, 744985 - HOOD, SUPPORT, STOP, LEFT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47884141

BRACKET

1шт.

2

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

2шт.

3

84364043

SCREW

2шт.

4

47884691

BRACKET

ASSY, Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Support, Incl in 4

1шт.

6

87313182

CLIP

1шт.

7

47651555

BRACKET

1шт.

8

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

9

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.
