(90.100.BB) - VAR - 396247, 758442, 758549 - HOOD, FRAME, SUPPORT

Запчасти Case IH MAXXUM 135 (90.100.BB) - VAR - 396247, 758442, 758549 - HOOD, FRAME, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

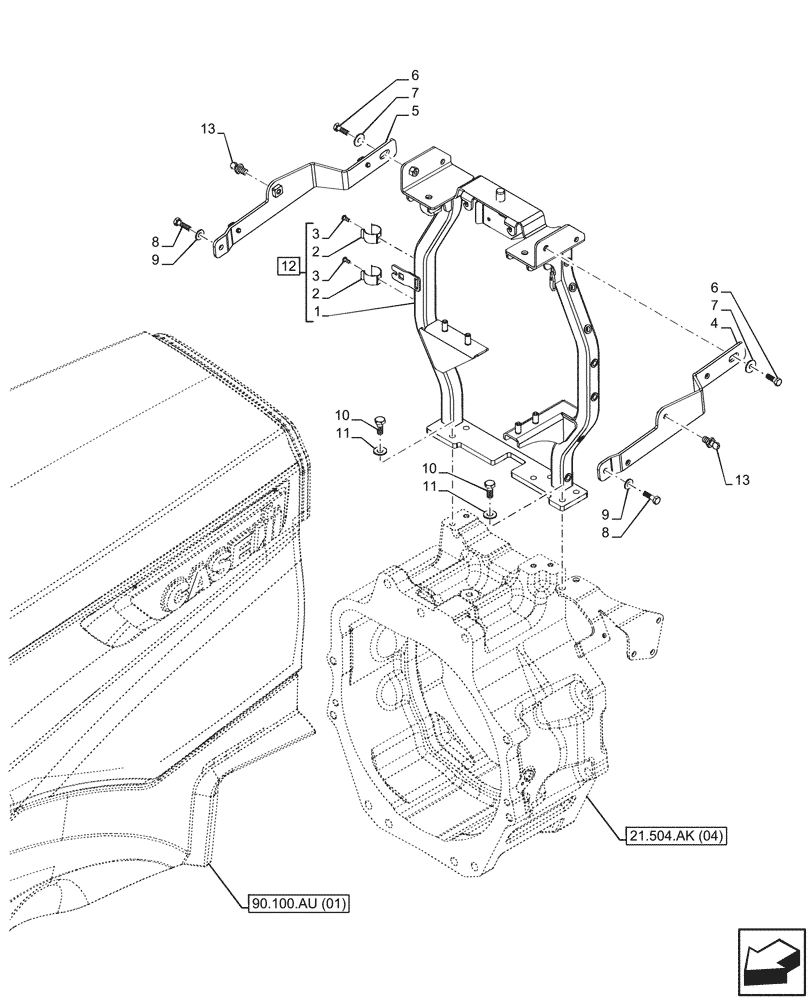

Схема запчастей Case IH MAXXUM 135 - (90.100.BB) - VAR - 396247, 758442, 758549 - HOOD, FRAME, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.100.au (01)
8
3
7
11
12
2
3
2
8
6
9
1
4
6
10
9
5
13
10
7
13
11
21.504.ak (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47588871

SUPPORT

1шт.

2

47439929

SPRING CLIP,26.0-30.0mm D

2шт.

3

47511292

SCREW,Hex, M4 x 0.7 x 10mm

2шт.

4

47798697

BRACKET

LH

1шт.

5

47801440

BRACKET

RH

1шт.

6

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

7

12642001

WASHER,8.15mm ID x 25mm OD x 1.5mm Thk

2шт.

8

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

9

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

10

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

11

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

12

47774415

SUPPORT

ASSY, Incl 1 - 3

1шт.

13

83952214

BALL STUD,M8 x 29.5mm OAL

2шт.
