(90.100.AU[02]) - VAR - 392209, 743729, 744985 - HOOD, LOWER

Запчасти Case IH MAXXUM 135 (90.100.AU[02]) - VAR - 392209, 743729, 744985 - HOOD, LOWER (90) - PLATFORM, CAB, BODYWORK AND DECALS

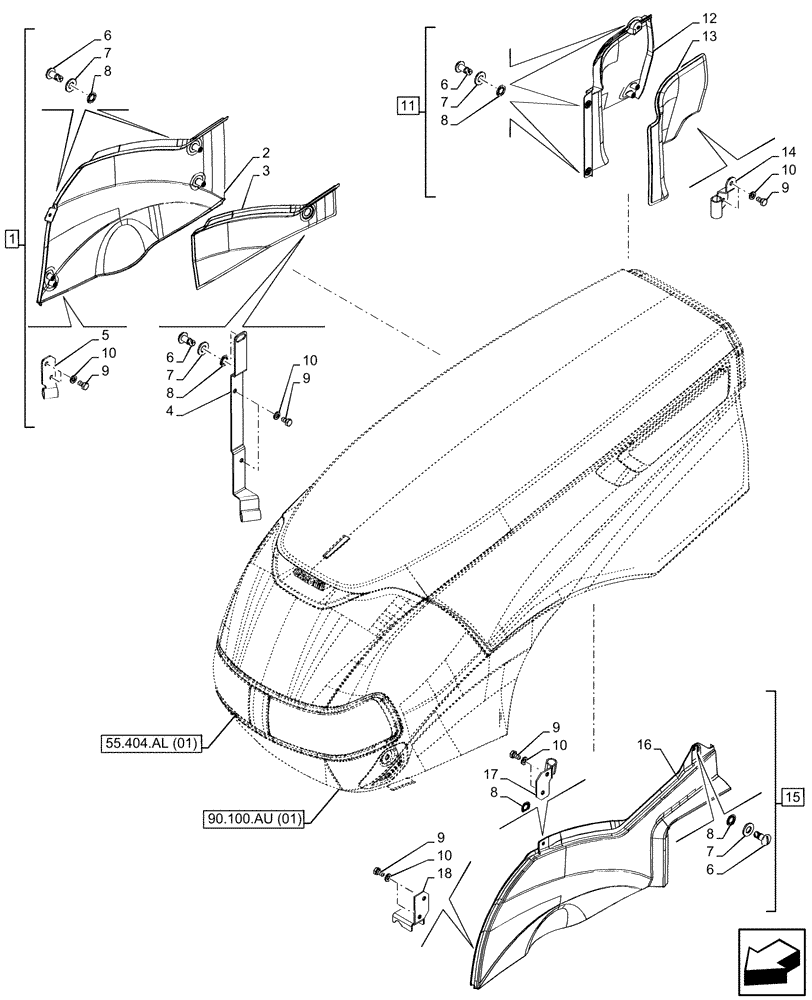

Схема запчастей Case IH MAXXUM 135 - (90.100.AU[02]) - VAR - 392209, 743729, 744985 - HOOD, LOWER (90) - PLATFORM, CAB, BODYWORK AND DECALS
55.404.al (01)
17
9
9
4
9
8
8
10
15
9
5
10
2
10
7
11
1
8
7
6
13
10
3
14
12
6
16
6
18
8
8
7
10
7
9
6
90.100.au (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47590094

SIDE PANEL

ASSY, Incl 2 - 5, 6 (Qty2), 7 (Qty2), 8 (Qty2), 9 (Qty4), 10 (Qty4)

1шт.

2

NSS

NOT SOLD SEPARAT

Panel, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Shield, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Bracket, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Bracket, Incl in 1

1шт.

6

87585593

FASTENER,9mm ID x 18mm OD

7шт.

7

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

7шт.

8

87313183

RETAINER

7шт.

9

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

10шт.

10

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

10шт.

11

47590100

SIDE PANEL

ASSY, Incl 6 (Qty3), 7 (Qty3), 8 (Qty3), 9 (Qty2), 10 (Qty2), 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

Panel, Incl in 11

1шт.

13

NSS

NOT SOLD SEPARAT

Shield, Incl in 11

1шт.

14

NSS

NOT SOLD SEPARAT

Bracket, Incl in 11

1шт.

15

47590092

SIDE PANEL

ASSY, Incl 6 (Qty2), 7 (Qty2), 8 (Qty2), 9 (Qty4), 10 (Qty4), 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

Panel, incl in 15

1шт.

17

NSS

NOT SOLD SEPARAT

Bracket, Incl in 15

1шт.

18

NSS

NOT SOLD SEPARAT

Bracket, Incl in 15

1шт.
