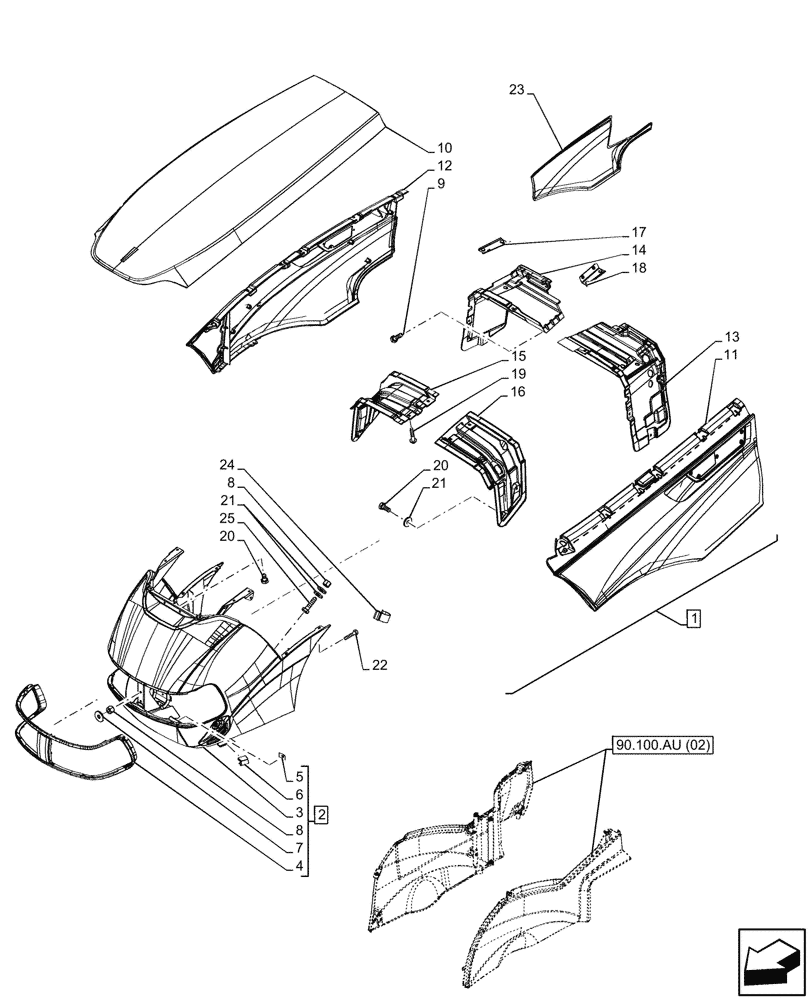

Запчасти Case IH MAXXUM 135 (90.100.AU[01]) - VAR - 392209, 743729, 744985 - HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47580997

HOOD

ASSY, Incl 9 - 21

1шт.

2

47589956

RADIATOR GRILLE

ASSY, Incl 3 - 7, 8 (Qty 3)

1шт.

3

NSS

NOT SOLD SEPARAT

Grille, Incl in 2

1шт.

4

47576289

BEZEL

1шт.

5

14227674

SPRING NUT,B Style, M4 x 14mm L x 0.4mm Thk

8шт.

6

87536288

CLIP

4шт.

7

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

3шт.

8

12574211

NUT,M6 x 1, Cl 8

13шт.

9

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

4шт.

10

NSS

NOT SOLD SEPARAT

Hood Up, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

LH Panel, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

RH Panel, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

LH Crossmember, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

RH Crossmember, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

LH Crossmember, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

RH Crossmember, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

RH Plate, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

LH Plate, Incl in 1

1шт.

19

82034113

SELF-TAP SCREW,Torx, Round HD, M5 x 3 x 25mm

8шт.

20

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

16шт.

21

12647621

WASHER,6.15mm ID x 16mm OD x 2mm Thk

47шт.

22

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

7шт.

23

47645670

SHIELD

1шт.

24

47644286

RETAINER,16mm ID x 20.8mm L x 12.7mm Thk

4шт.

25

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

10шт.
