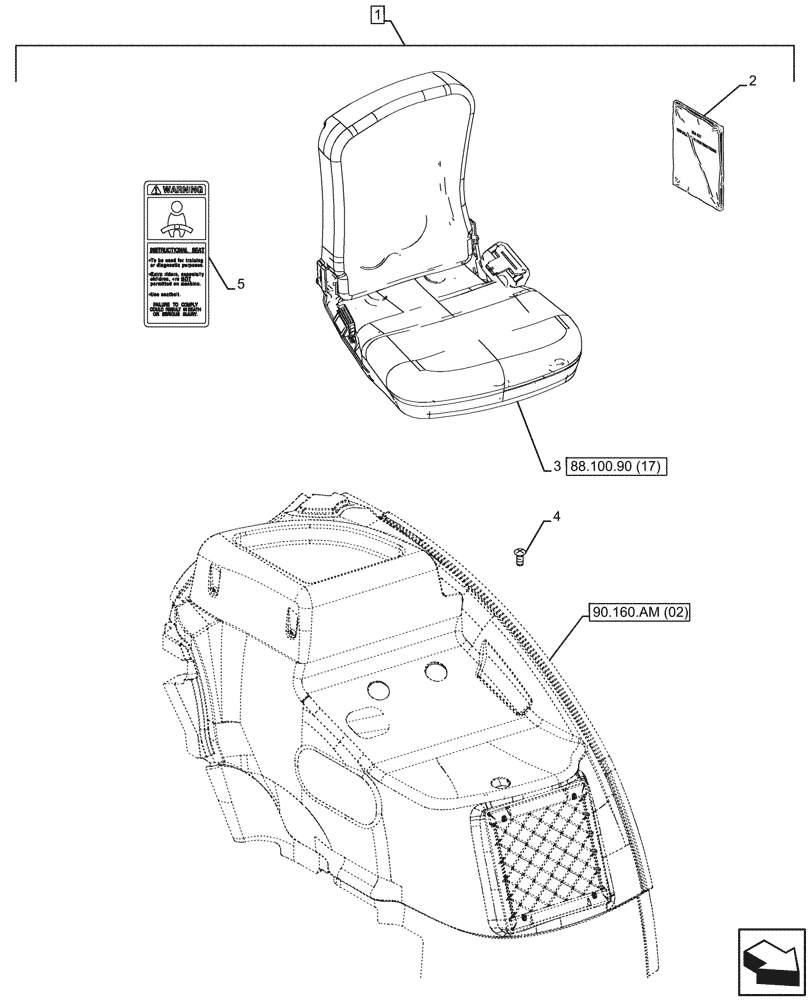

Запчасти Case IH MAXXUM 135 (88.100.90[16]) - DIA KIT, PASSENGER SEAT (88) - ACCESSORIES

1

718248024

DIA KIT, TRACTOR

Instructional Seat W/ Belt (New Fabric), Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47803982

INSTRUCTION

1шт.

3

47773594

INSTRUCTIONAL SEAT

W/ Belt, Fabric Apollo Art. Verona Grey, ASSY

1шт.

4

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

6шт.

5

82030479

DECAL

English

1шт.

5

82030441

DECAL

French

1шт.

5

82030480

DECAL

Spanish

1шт.
